    Full Automatic Shrink Film Package Industrial Maxi Roll Making Machine Production Line

    Ask Lasest Price
    Brand Name : XINYUN
    Model Number : XY-TQ-A-H
    Certification : CE
    Price : 100000 usd
    Payment Terms : T/T
    Supply Ability : 500 sets per year
    Delivery Time : 60-70 days
    • Product Details
    • Company Profile

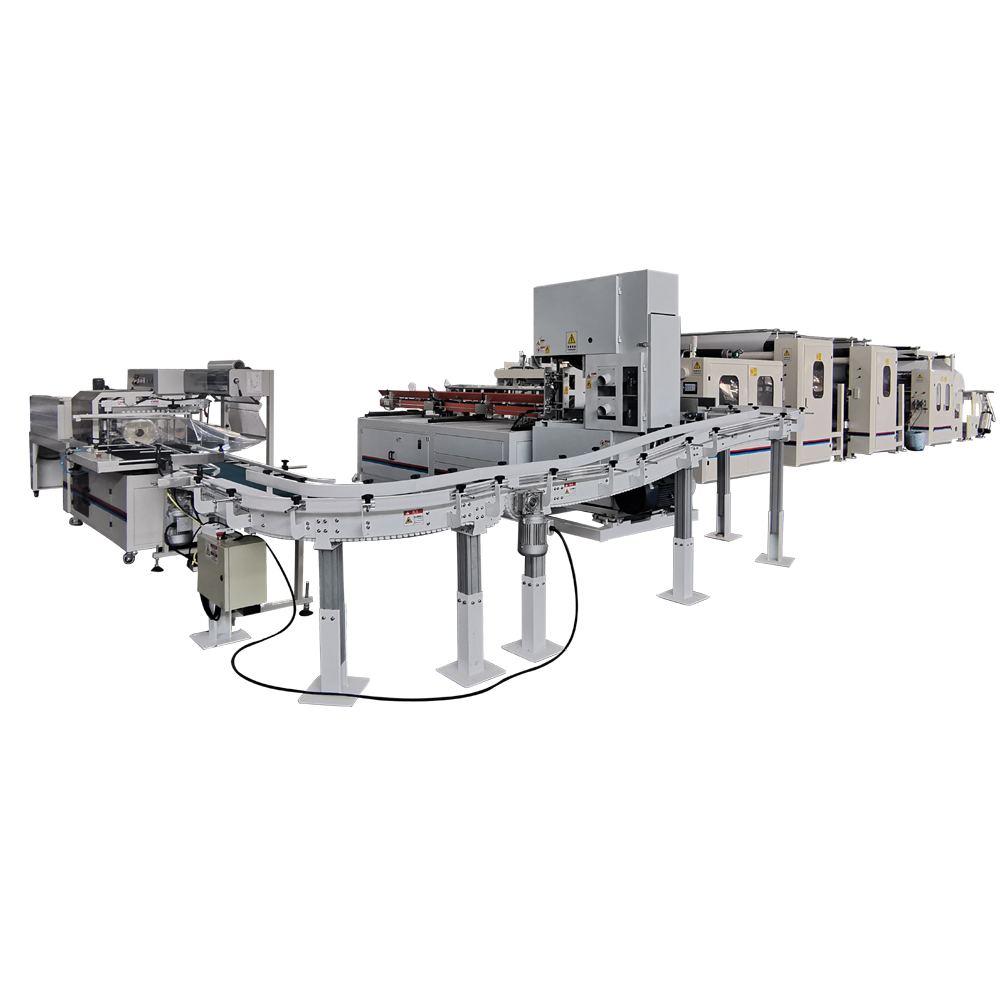

    Full Automatic Shrink Film Package Industrial Maxi Roll Making Machine Production Line

    Full automatic shrink film package industrial maxi roll making machine production line

    Full Automatic Shrink Film Package Industrial Maxi Roll Making Machine Production Line

    Technical performance characteristic:
    This production line consists of :
    1. XY-TQ-B kitchen towel and toilet paper and maxi roll rewinding machine
    2. XY-AI-500 Full automatic maxi roll band saw cutting machine
    3. XY-TN-269 Automatic maxi roll heat shrinking packing machine
    From jumbo roll paper into the finished rollers, the whole line work smoothly and run stable, saving the labor cost and reducing the labor strength. It’s best choice for the producing maxi roll products.
    Full Automatic Shrink Film Package Industrial Maxi Roll Making Machine Production Line
    1. XY-TQ-B kitchen towel and toilet paper and maxi roll rewinding machine

    Feature and Function

    1. Automatic core feeding system, automatic log pusher after rewinding, then rewinding the new log again.
    2. Automatic edge-trimming, core feeding, glue spraying and sealing synchronously in one time.

    3.Leaving 10-18mm tail, easy to rewind again, so reducing shortcut waste and save the cost.
    4. Adopts international advanced PLC programmable controlling technique, man-machine interface operation, data set and parametric fault shows on touch screen.

    5. Three horizontal type back stands, pneumatic loading system, with wide driving flat belts; each jumbo roll can be adjusted independently.

    6. Embossing Unit: adopt point to point embossing rollers, making the two layers match well, the paper is soft and has clear patterns

    7. Adopt jogging switches for wearing the paper, easy and safe to operate.

    Product Parameters

    Jumbo roll width 1800mm (Other size can be specified)
    Jumbo roll diameter max.1200mm(Other size can be specified)
    Jumbo roll inner core diameter 3 inches(76.2mm)
    Finish product diameter 90-280mm
    Finish product inner core diameter 35-90mm
    Perforation distance 100-300mm(Other size can be specified)
    Production speed 180-230m/min
    PLC INVT
    Rewinding Unit with core or coreless(need to point out)

    Full Automatic Shrink Film Package Industrial Maxi Roll Making Machine Production Line

    2. XY-AI-500 Full automatic maxi roll band saw cutting machine

    Cutting speed
    15-20cuts/minute
    Cutting channel
    single channel
    Cutting blade
    band saw blade(18,000--20,000 rolls/blade)
    Cutting blade size
    6390*90*1.2MM
    Log length
    ≦2200mm or ≦2850mm
    Tolerance
    ±2mm
    Cutting length
    ≦300mm
    Cutting diameter
    150-300mm(Adjustable)
    Thickness of paper core
    ≦3 mm
    Power supply
    15KW 3 phase 4line 380V 50HZ
    Machine weight
    2700KG
    Overall size of machine
    6546×2651×2635mm

    Full Automatic Shrink Film Package Industrial Maxi Roll Making Machine Production Line

    3. XY-TN-269 Automatic maxi roll heat shrinking packing machine
    Model
    4525L cutting and sealing machine
    4525 temperature shrink machine
    Power source
    220V 50Hz/60Hz
    380V 50/60Hz
    Rated Power
    1.55KW
    12 KW
    Sealing Size
    L800*W400*H200MM
    450*220*120mm
    Packing speed
    20-40 Packs /min
    0-10m/min
    Packaging Size
    L450 x W400 x H120 MM
    450*220*120mm
    Machine size
    L1500×W750×H1360mm
    L1600×W700×H1300mm
    Weight
    300KG
    150KG
    Full Automatic Shrink Film Package Industrial Maxi Roll Making Machine Production Line
    Full Automatic Shrink Film Package Industrial Maxi Roll Making Machine Production Line
    Full Automatic Shrink Film Package Industrial Maxi Roll Making Machine Production Line
    Full Automatic Shrink Film Package Industrial Maxi Roll Making Machine Production Line
    Full Automatic Shrink Film Package Industrial Maxi Roll Making Machine Production Line
    Full Automatic Shrink Film Package Industrial Maxi Roll Making Machine Production Line
    Q: Are you trading company or manufacturer
    A: We are factory.

    Q: How long is your delivery time?
    A: Generally it is 5-10 days if the goods are in stock. or it is 60-90 days if the goods are not in stock, it is according to
    quantity.

    Q: What is your terms of payment ?
    A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
