    Fully Automatic Maxi Roll Toilet Tissue Paper Band Saw Cutting Machine For Big Orders

    Ask Lasest Price
    Brand Name : XINYUN
    Model Number : XY-AI-500
    Certification : CE
    Price : USD 22000 Set
    Payment Terms : T/T
    Delivery Time : Within 70 days after receipt of the deposit.
    • Product Details
    • Company Profile

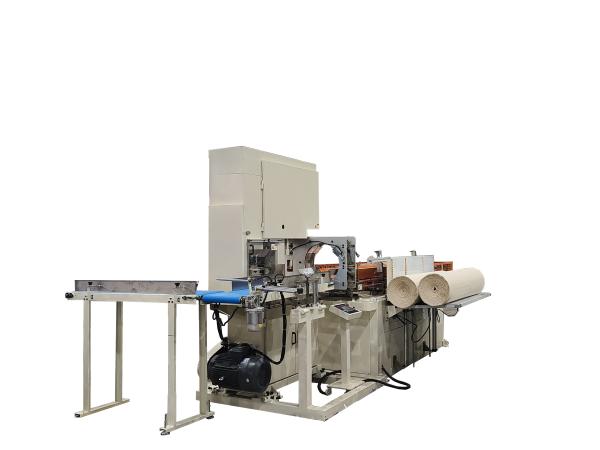

    Fully Automatic Maxi Roll Toilet Tissue Paper Band Saw Cutting Machine For Big Orders

    XY-AI-500 Good Quality Maxi Roll Toilet Tissue Paper Band Saw Cutting Mahcine

    Fully Automatic Maxi Roll Toilet Tissue Paper Band Saw Cutting Machine For Big Orders

    Description of The Equipment:

    The equipment embodies our state-of-the-art R&D achievements, developed through comprehensive market analysis and integration of advanced technologies. Featuring PLC program control and a high-resolution color touchscreen interface, it offers user-friendly operation with exceptional precision. The system incorporates precise servo control for feed length measurement, combined with internationally recognized technologies in electromechanical integration, enabling fully automated detection of critical operations. Furthermore, our integrated fault diagnosis system guarantees optimal operational efficiency and reliability, significantly reducing downtime and maintenance demands while ensuring consistent performance.


    Features:

    1.The main motor uses an inverter for independent drive.
    2.Cutting diameter of paper roll is adjustable from 100~280mm.
    3.Automatic sharpening system adjusts grinding wheel feed according to blade loss.
    4.Grinding system has a dedicated dust removal device.
    5.Band saw uses a hydraulic tension system.
    6.Automatic stop and alarm in case of knife breakage.
    7.High-precision servo system ensures product quality.
    8.Finished product count is calculated automatically based on raw materials and length.
    9.Device stops and prompts when input data is incorrect.
    10.Band saw cutting reduces user costs.
    11.Finished paper core thickness should be less than 3mm (suggestion).


    Main Technical Parameters:

    Cutting speed15-30cuts/minute
    Cutting channelsingle channel
    Cutting bladeband saw blade(18,000--20,000 rolls/blade)
    Cutting blade size5180*100*1.05
    Log length≦2200mm or ≦2850mm
    Tolerance±2mm
    Cutting length≦300mm
    Cutting diameter150-300mm(Adjustable)
    Thickness of paper core≦3 mm
    Power supply15KW 3 phase 4line 380V 50HZ
    Machine weight2700KG
    Overall size of machine

    4600*2350*2200mm(2.2m jumbo roll)

    5300*2350*2200mm (2.2-2.85m jumbo roll)


    Detail Pictures:

    Fully Automatic Maxi Roll Toilet Tissue Paper Band Saw Cutting Machine For Big OrdersFully Automatic Maxi Roll Toilet Tissue Paper Band Saw Cutting Machine For Big Orders


    FAQ:
    Q: Are you trading company or manufacturer?
    A: We are factory.
    Q: How long is your delivery time?
    A: Generally it is 5-10 days if the goods are in stock. Or it is 60-90 days if the goods are not in stock, it is according to quantity.
    Q: Do you provide samples? Is it free or extra?
    A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
    Q: What is your terms of payment?
    A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
