Cheap price 10 bags bundle drawing facial tissue V fold paper machine production line
Technical performance characteristic:

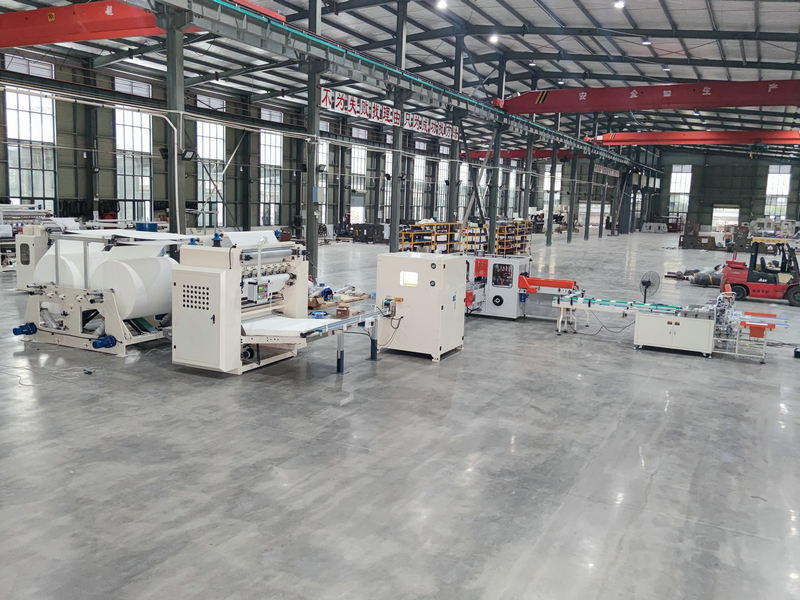

This production line consists of :
XY-GU-20A Automatic transfer Facial Tissue Folding Machine,
XY-GU-281 Automatic Facial Tissue Cutting Machine
XY-BT-298 Automatic Facial Tissue Bag Packing Machine XY-GU-26B Semi Automatic facial tissue bundle packing machine
From jumbo roll paper into the finished product, the whole line work smoothly and run stable, saving the labor cost and reducing the labor strength. It’s best choice for the producing palstic bag facial tissue.
1. XY-GU-20A Automatic Facial Tissue Folding Machine
Main functions
1. Each unit are control by servo motor ,can adjust different raw material ratio of expansion and contraction
2. Wallboard rack and fast machine running stability is excellent.
3. Pneumatic jumbo roll loading,pneumatic paper driving , Stepless speed ratio of adjustment ,and web tension control.
4. Equipped with roots type vacuum pump for stable running of the machine
5. Ink counting, simple and practical.
6. Equipped with edge embossing unit to keep the plies together
7. The machine will stop when the paper broken.It avoid waste caused by no paper or paper broken.
8. The web can be threaded on the machine by the two jog buttons,It's more safety and easier to thread the web.
| Name | Automatic Facial Tissue Folding Machine |
| Speed | 80-100m/min |
| Overall size(L*W*H) | 8500*2250*2000mm |
| Weight of raw paper | (14-18)*2gsm |
| Power | 35.3KW (380V,50HZ,3phase) |
2. XY-GU-281 Automatic Facial Tissue Cutting Machine
High speed facial tissue cutting machine is an important component equipment of Box-drawing facial tissue production line , which can greatly improve the level of automation and production efficiency of the production line.
The machine is strong, beautifully designed, cut paper precise movements, rolls flat section, and smooth.
3. XY-BT-298 Automatic Facial Tissue Bag Packing Machine
Application: This machine is mainly used for Facial Tissue or Napkin Paper Packing.
Main performance and structure features:
1. Adopt packing method by wrapping, hemming and sealing with compact structure and high product appeal.
2. Adopt the controlling system of step-less frequency conversion, touching screen and PLC, clear display and easy maintenance.
3. Adopt auto-putting conveyor, easy to be connected with automatic production line, saving laboring cost.
4. Stepless-speed regulation with double transducer, automatically adjusting packing film length.
5. High auto immunization, high specialization, high efficiency and but less trouble.
6. Different sizes can be handled easily thanks to a fast and simple changeover facility.
4. XY-GU-26B Semi Automatic facial tissue bundle packing machine
| Name | XY-GU-26B Semi Automatic facial tissue bundle packing machine |
| Packing length (mm) | 210-500 |
| Packing width (mm) | 260-400 |
| Packing height (mm) | 100 |
| Material of film | Pre-made PE plastic bag |
| Finished Products | facial tissue |
| Warranty | 1 Year Excluding Wearing Parts |
| Function | Packing machine |
| Packing type(bag) | 2*3, 2*4, 2*5 |
| Air supply | 0.6MPA |
Q: Are you trading company or manufacturer
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 60-90 days if the goods are not in stock, it is according to
quantity.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
Fujian Xinyun Machinery Development Co.,Ltd is good at Paper Converting Machinery Manufacture.
Professional supplier of:
1) Toilet Paper Machine (1.2m--2.8m width of parent roll, Customize Service)
2) Roll Kitchen Paper Towel Machine (1.2m--2.8m width of parent roll, Customize Service)
3) Facial Tissue Machine (2-14 output lanes)
4) Napkin Paper machine(L-fold, 1/4-fold, 1/6-fold, 1/8-fold and other multi-fold type)
5) Hand Towel Paper Machine(C-fold, V-fold and N/Z fold type)
6) Pocket Tissue Machine(mini and standard size)
7) All kinds of Tissue Paper Cutting and Packing Machine
8) Another Household Paper Equipments and Production Line.
