Automatic heat shrinking large roll maxi paper towel rewinding cutting packing machine Production Line
- Automatic Toilet Paper Roll Making Machine – High Efficiency for South American Manufacturers"
- "Industrial Toilet Paper Production Line – Perfect for South American Tissue Businesses"
Technical performance characteristic:

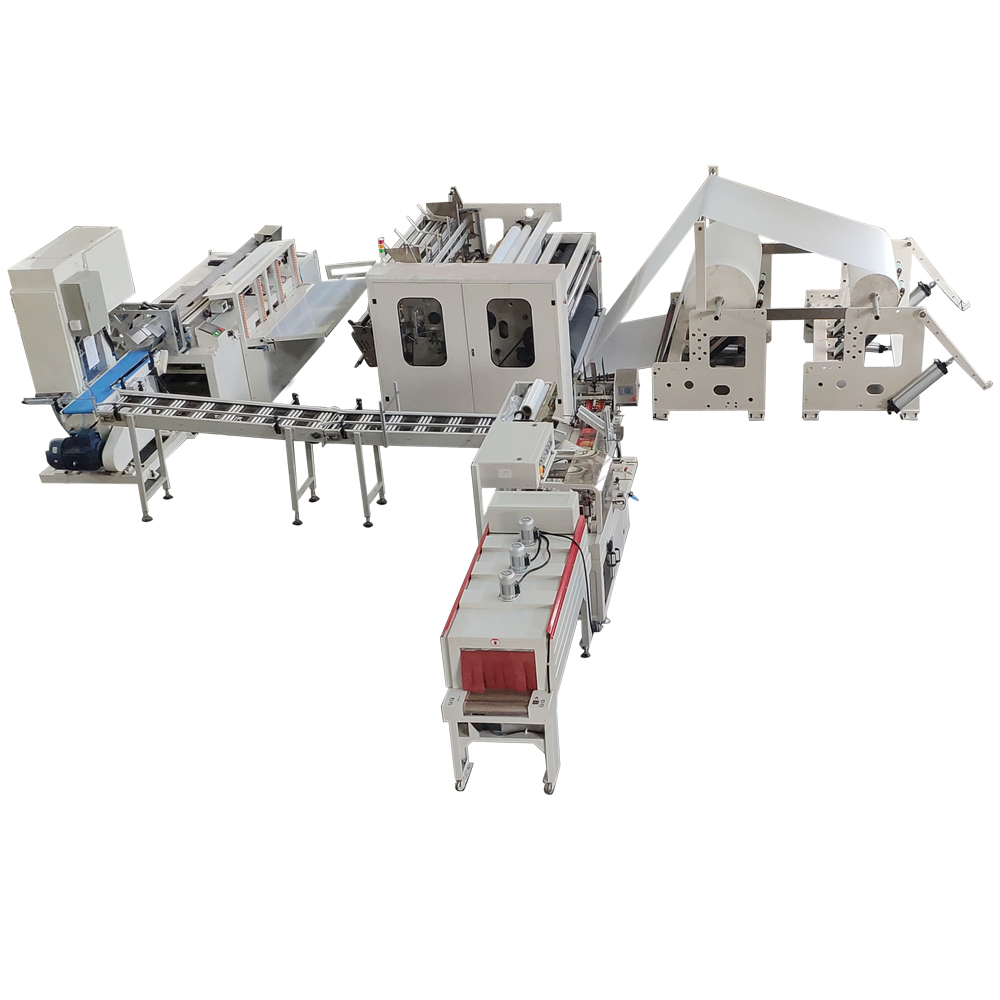

This production line consists of :
1. XY-TQ-B toilet paper and maxi roll rewinding machine
2. XY-AI-500 Full automatic maxi roll band saw cutting machine
3. XY-TN-269 Automatic maxi roll heat shrinking packing machine
From jumbo roll paper into the finished rollers, the whole line work smoothly and run stable, saving the labor cost and reducing the labor strength. It’s best choice for the producing maxi roll products.

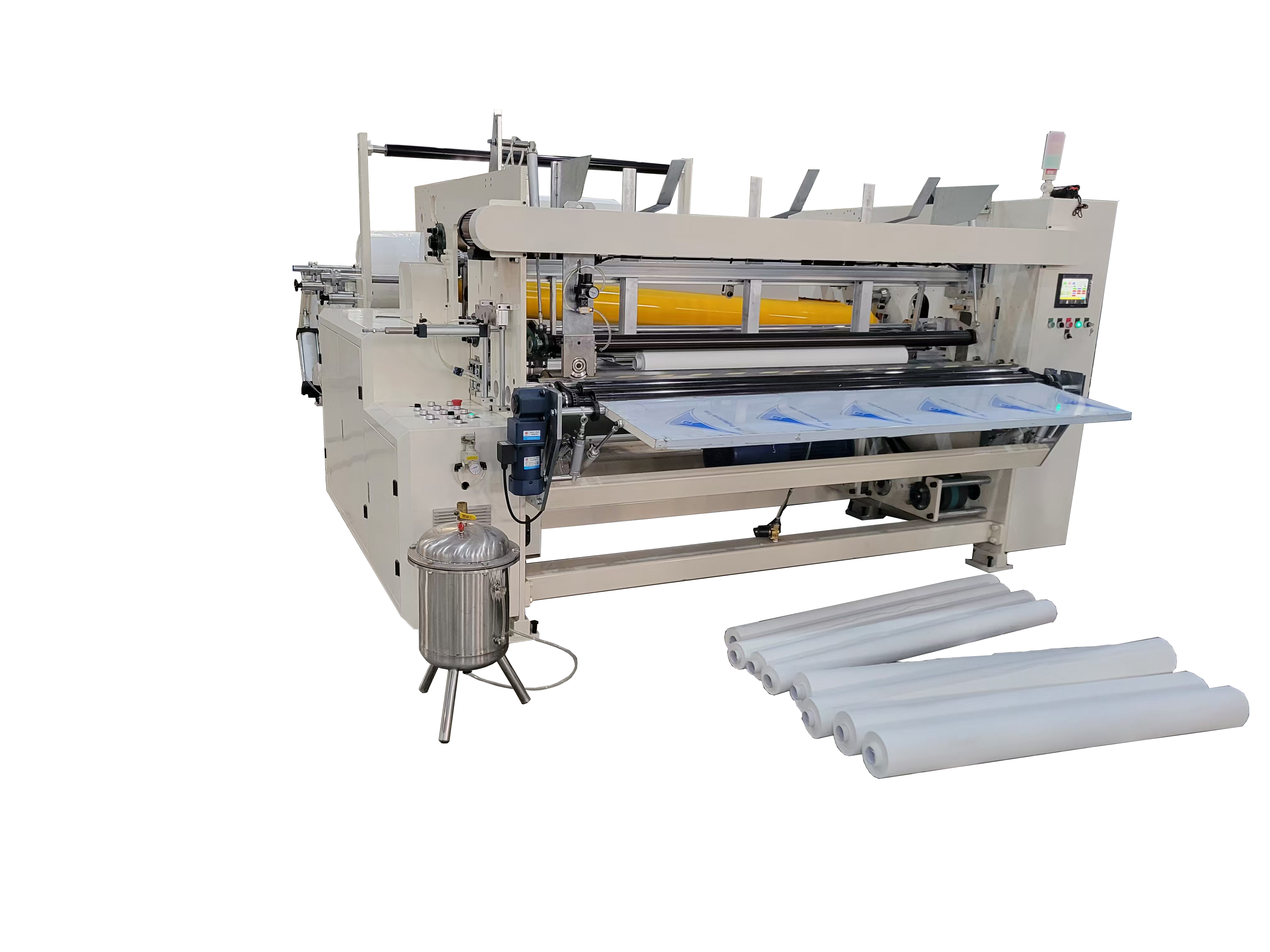

1. XY-TQ-B toilet paper and maxi roll rewinding machine
High speed 230m/min toilet tissue paper / maxi roll rewinding machine is for toilet paper roll/maxiroll processing. Machine have core feeding unit. Raw material from jumbo roll after full embossing or edge embossing, then perforation, end cutting and spray the tail glue become a log. Then it can working with cutting machine and packing machine to become the finished products. maxi roll production line
The machine is controlled by PLC, people operate it through touch screen, the whole process is automatic, easy to operate, lower the man cost. And Our machine can special-made according to clients’ requirements.
Product Parameters
| Machine Model | XY-TQ-B |
| Jumbo Roll Max Width | 2800mm (Other size can be specified) |
| Jumbo Roll Diameter | Φ1200mm(Other size can be specified) |
| Jumbo Roll Inner Diameter | 3inches(76.2mm) (Other size can be specified) |
| Perforation Distance | 4 anvil Blades(115mm)(Other size can be specified) |
| Finished Product Diameter | Φ90~φ280mm |
| Finished Product Core Diameter | φ38~φ76mm |
| Production Speed | 200~230m/min |
| Program Controller | PLC( INVT ) |
| Unwind Stands | 2 Stands(Need to be specified) |
| Pneumatic System | 3HP Air Compressor, Minimum Pressure: 5kg/cm 2Pa(Provide by user) |
| Main Power | 14KW 380V 50HZ |
| Dimension | 7000*4000*1900(L*W*H) |
| Weight | About 7T |
| Edge-Line Embossing | Steel to steel (Pneumatic Control) |
| Full Embossment | Steel to rubber. |
2. XY-AI-500 Full automatic maxi roll band saw cutting machine
| Cutting speed | 15-20cuts/minute |
| Cutting channel | single channel |
| Cutting blade | band saw blade(18,000--20,000 rolls/blade) |
| Cutting blade size | 6390*90*1.2MM |
| Log length | ≦2200mm or ≦2850mm |
| Tolerance | ±2mm |
| Cutting length | ≦300mm |
| Cutting diameter | 150-300mm(Adjustable) |
| Thickness of paper core | ≦3 mm |
| Power supply | 15KW 3 phase 4line 380V 50HZ |
| Machine weight | 2700KG |
| Overall size of machine | 6546×2651×2635mm |
3. XY-TN-269 Automatic maxi roll heat shrinking packing machine
| Model | 4525L cutting and sealing machine | 4525 temperature shrink machine |
| Power source | 220V 50Hz/60Hz | 380V 50/60Hz |
| Rated Power | 1.55KW | 12 KW |
| Sealing Size | L800*W400*H200MM | 450*220*120mm |
| Packing speed | 20-40 Packs /min | 0-10m/min |
| Packaging Size | L450 x W400 x H120 MM | 450*220*120mm |
| Machine size | L1500×W750×H1360mm | L1600×W700×H1300mm |
| Weight | 300KG | 150KG |
maxi roll machine,maxi paper towel machine,maxi roll production line,large roll machine,large roll production line
Q: Are you trading company or manufacturer
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 60-90 days if the goods are not in stock, it is according to
quantity.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
|
|
|
