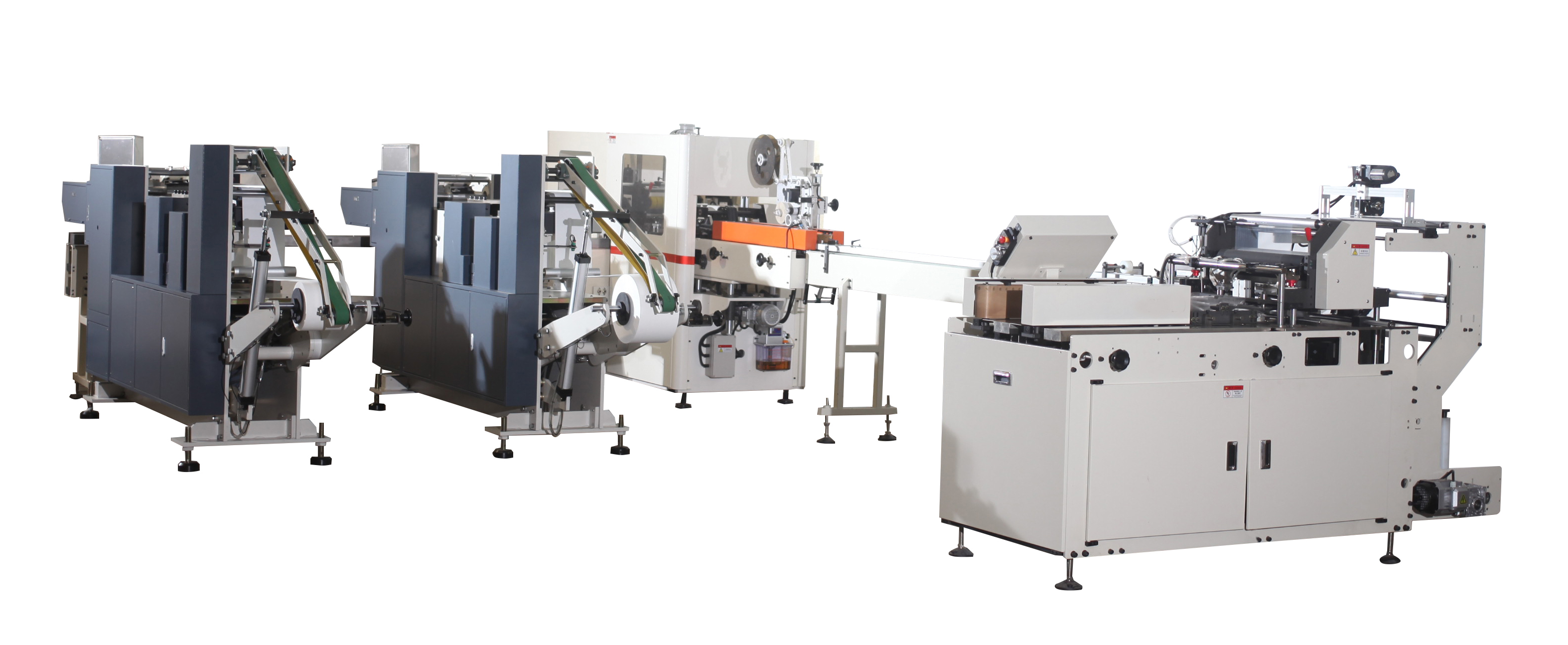

Full automatic handkerchief paper portable tissue making machine production line

Prduction line Including

1． Pocket tissue(handkerchief tissue) folding machine with separator

2． Automatic pocket tissue (handkerchief tissue) packing machine

3． Automatic pocket tissue(handkerchief tissue) wrapping machine

handkerchief paper machine,handkerchief paper production line,portable tissue machine,handkerchief paper making machine,pocket tissue production line

Model & Main technical parameter

Speed of the separator: 60 bags/min
Programming control: PLC
Parameter setting: Touch screen
Speed control: Frequency converter
Raw material:13-25gm 1-3plies
Width of jumbo roll:210mm
Outer Dia. of jumbo roll: max. 1500mm
Inner Dia. of jumbo roll core:76.2mm
Braking: Pneumatic
Embossing unit: single embossing (steel to rubber, stamp designed by user)
Vacuum pump: 5.5Kw, 380V, 50Hz
Production speed:600PCS/min (controlled by frequency converter)
Finished products unfold size: 210*210mm
Finished products folded size: 102*52mm and 72*52mm
Main transmission: chain and chain wheel transmission
Power: 0.75kw, 380v, 50Hz
Pressure of pneumatic system:6kg/cm2(user supplied)
Counter: electronic counter
Overall size: 3851×650×1380mm(L×W×H)
Over weight: about 1T

2. Automatic pocket tissue (handkerchief tissue) packing machine

Size of finished product: standard size:L=102mm, W=52mm, H=22-26mm
Mini size:L=72mm, W=52mm, H=22-26mm
Packing size(L*W*H): (70-110)*(50-55)*(20-28)mm
Machine speed: 105bags/min
Stable speed: 90bags/min
Heating power: 3.5Kw, 220V, 50Hz
Drive power: 1.5Kw, 380V, 50Hz
Packing material: double-sided heat sealing membrane such as CPP, PE, CPP
Programming control: PLC (SIEMENS)
Frequency converter: MITSUBISHI
Air pressure: 0.6Mpa (user supplied)
Parameter setting: Touch screen (WEINVIEW)
Step Motor: 0.38Kw, 380V, 50Hz (KINCO)
Machine size: 2840*2650*1720mm (L*W*H)
Screws: All are hexagon socket
Machine weight: 1.5T

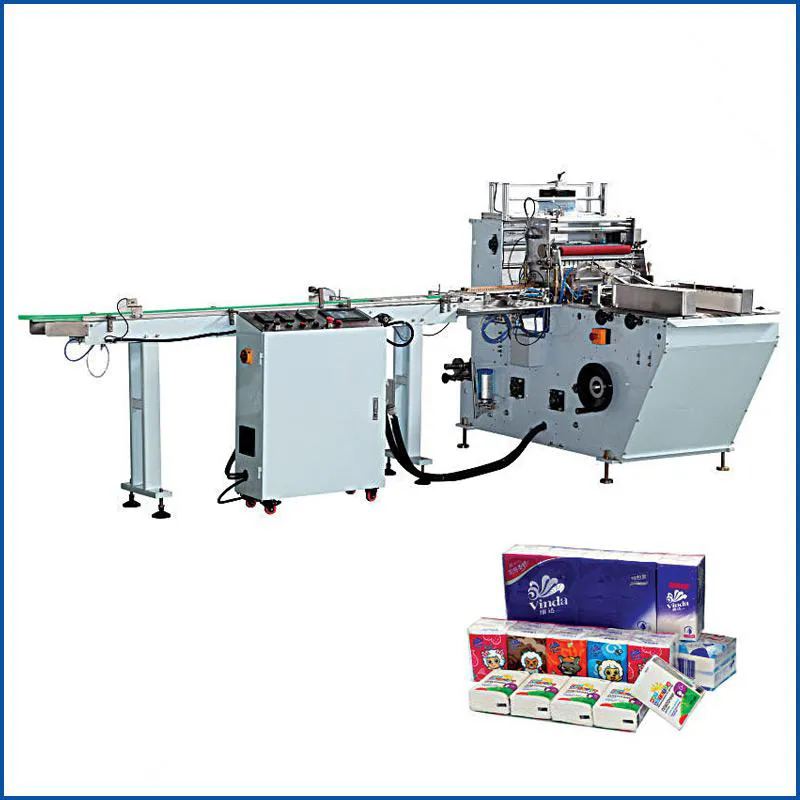

3. Automatic pocket tissue (handkerchief tissue) wrapping machine

Size of the finished product: 5*2(standard size:260*102*44/52mm,
mini size:260*72*44/52mm)
Machine speed: 8-12bags/min
Heating power: 1.78Kw, 380V, 50Hz
Drive power: 1.5Kw, 380V, 50Hz
Packing material: double-sided heat sealing membrane such as CPP, PE, etc.
Programming control: PLC (SIEMENS)
Frequency converter: MITSUBISHI
Air pressure: 0.6Mpa (user supplied)
Parameter setting: Touch screen (WEINVIEW)
Step Motor: 0.38Kw, 380V, 50Hz (WOTO)
Machine size: 2500*2350*1550mm (L*W*H)
Machine weight: 1.4T
