Fully Automatic 48 rolls Bundle Packing Small Toilet Paper and Kitchen Towel Roll Machine Production line for South American Tissue Paper Businesses

Ask Lasest Price
Brand Name :	XINYUN
Model Number :	XY-TQ-A-D
Certification :	CE
Price :	150000-200000 USD
Payment Terms :	T/T
Supply Ability :	500 sets per year
Delivery Time :	60-70 days

Add to Cart

Product Details
Company Profile

Fully Automatic 48 rolls Bundle Packing Small Toilet Paper and Kitchen Towel Roll Machine Production line for South American Tissue Paper Businesses

Fully Automatic 48 rolls Bundle Packing Small Toilet Paper and Kitchen Towel Roll Machine Production line for South American Tissue Paper Businesses

Advanced Paper Towel Converting System – Energy Efficient & Easy Operation

Professional Kitchen Roll Machine – Trusted by South American Suppliers

Technical performance characteristic:

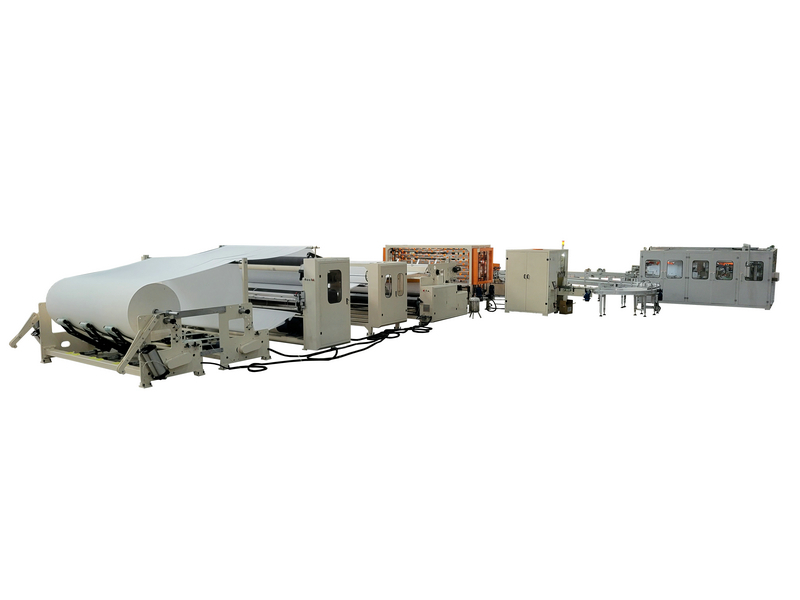

This production line consists of :

1. XY-TQ-B Automatic small kitchen towel and toilet paper making machine

2. XY-203 Log roll paper accumulator

3. XY-AI-280 High speed kitchen paper and toilet roll log saw Cutting Machine

4. XY-AI-398D Full automatic 4-48 rolls small kitchen towel and toilet paper packing machine

From jumbo roll paper into the finished rollers, the whole line work smoothly and run stable, saving the labor cost and reducing the labor strength. It’s best choice for the producing kitchen towel and toilet paper products.

Fully Automatic 48 rolls Bundle Packing Small Toilet Paper and Kitchen Towel Roll Machine Production line for South American Tissue Paper Businesses

1. XY-TQ-B Automatic kitchen towel and toilet paper rewinding machine

Feature and Function

Automated Core Feeding & Log Handling‌

Features an automatic core feeding system with integrated log pusher, enabling seamless rewinding of new logs without manual intervention.

Synchronized Edge-Trimming & Sealing‌

Performs edge-trimming, core feeding, glue spraying, and sealing in one synchronized cycle. Leaves a 10-18mm tail for easy rewinding, minimizing material waste and lowering production costs.

Smart PLC Control & User-Friendly Interface‌

Equipped with advanced PLC programmable control technology. Operates via an intuitive touch-screen HMI (Human-Machine Interface) with real-time data display, parameter settings, and fault diagnostics.

High-Precision Spiral Cutting System‌

Utilizes 4 high-accuracy spiral knives for clean perforation with minimal noise. Includes a gearbox for extended cutting range and versatility.

Pneumatic Jumbo Roll Handling‌

Three horizontal back stands with pneumatic loading and wide flat driving belts. Each jumbo roll is independently adjustable for precise alignment.

Premium Embossing Unit‌

Point-to-point embossing rollers ensure perfect layer alignment, delivering ultra-soft paper with sharp, consistent patterns.

Safe & Easy Operation‌

Jogging switches simplify paper threading, enhancing operator safety and convenience.

Product Parameters

Machine Model	XY-TQ-B
Jumbo Roll Max Width	1200-3000mm (Depends on the model)
Jumbo Roll Diameter	Φ1200mm(Other size can be specified)
Jumbo Roll Inner Diameter	3inches(76.2mm) (Other size can be specified)
Perforation Distance	4 anvil Blades(90-140mm)(Other size can be specified)
Finished Product Diameter	Φ90~φ300mm
Finished Product Core Diameter	φ38~φ90mm
Production Speed	180~230m/min
Program Controller	PLC( INVT )
Unwind Stands	2 Stands(Need to be specified)
Pneumatic System	3HP Air Compressor, Minimum Pressure: 5kg/cm 2Pa(Provide by user)
Main Power	40KW 380V 50HZ (Depends on the model)
Dimension	700040001900(LWH)
Weight	About 7T
Edge-Line Embossing	Steel to steel (Pneumatic Control)
Full Embossment	Steel to rubber.

2. XY-203 Log roll paper accumulator

Function: To make glue laminated log paper roll dry before cutting and packing, so to get a better effect.

Machine Model	XY-203 Log Accumulator
Log Width	1750~2800mm(Other size can be specified)
Log Diameter	Φ95mm~Φ140mm
Log Standings	65 Logs
Accumulate speed	20 logs/min
Log Qty	60 logs(need to be ordered)
Overall Dimensions	400030005500mm
Programming Controller	PLC(Delta)

3. XY-AI-280 Full Automatic kitchen paper and toilet roll log saw Cutting Machine

Name	Full Automatic kitchen paper and toilet roll log saw Cutting Machine
Cutting blade	log saw blade(size 61068.33.8mm)
Finished Product length	250mm
Finished Product Diameter	95-140 mm
Production Speed	180-200 rolls/min
Toilet log length	2200 mm/2800 mm
Finished Products	Small Toilet Paper Roll and kitchen towel
Application	Paper roll Cutting Machine
Function	Cut Toilet Paper Roll and kitchen towel
Type	Paper Roll Cutting Machine

Fully Automatic 48 rolls Bundle Packing Small Toilet Paper and Kitchen Towel Roll Machine Production line for South American Tissue Paper Businesses

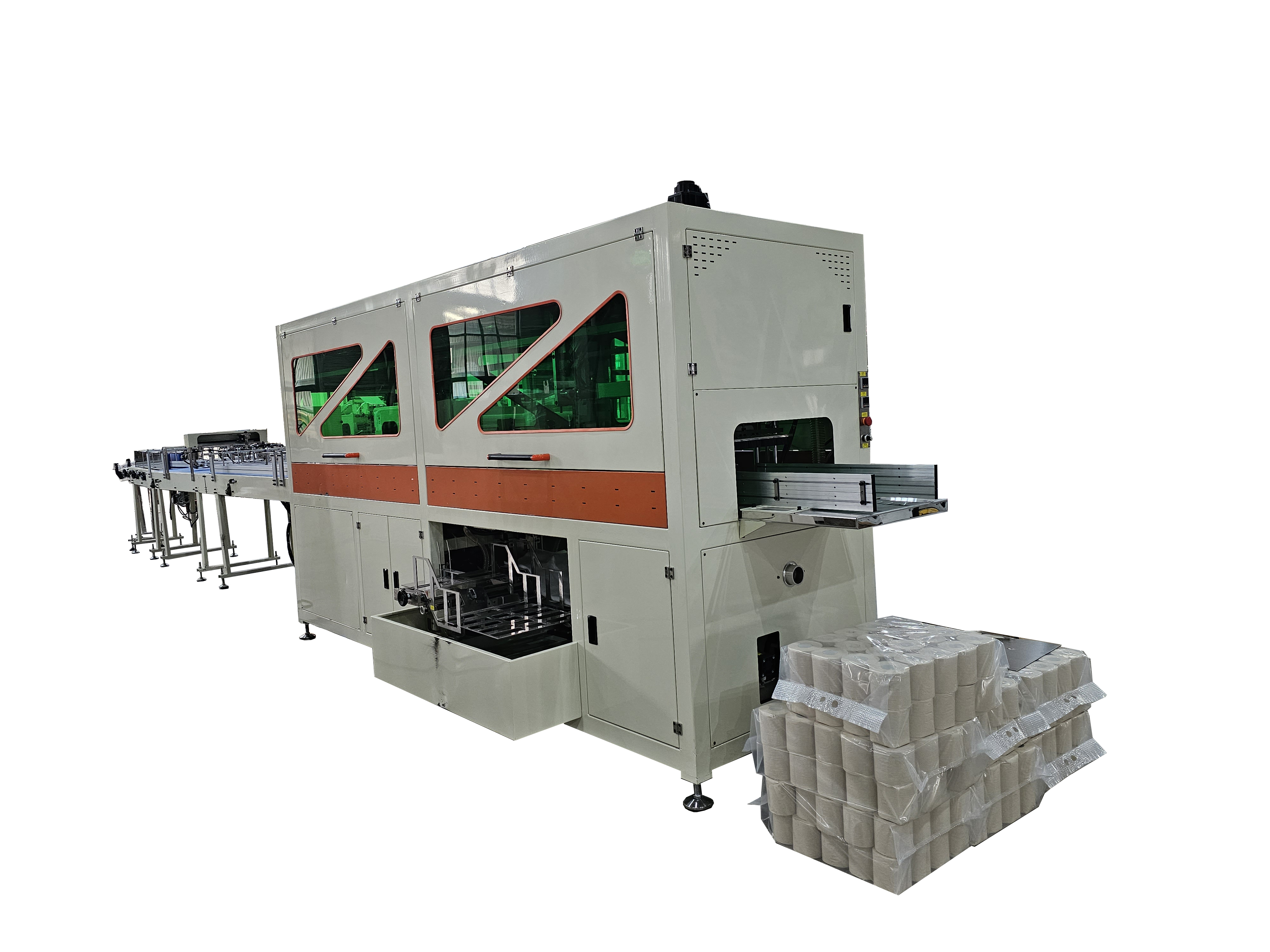

4. XY-AI-398D Full automatic 48 rolls kitchen towel and toilet paper packing machine

Characteristics:

1. The whole machine adopts PLC and servo motor as control and drive units to realize product conveying, material distribution, counting, bag taking, bag loading, bagging, vacuum folding and sealing fully automated operation;
2. Mold forming: The sealing adopts the mold negative pressure forming design to ensure the beautiful packaging effect;
3. Human-machine interface: touch screen setting and operation, simple and convenient operation;
4. Fault tracking alarm: can quickly find out the cause and location of the fault and automatically display it on the touch screen, which is convenient for equipment maintenance;
5. Monitoring system: monitoring of the presence or absence of packaging bags and products to prevent operation without packaging bags or products; when the packaging bag shape is abnormal, the bag will be automatically discharged when the bag opening fails; when the bag opening is abnormal, the machine will automatically stop running; when the packaging bag adhesion causes the bag opening to fail, the packaging bag will be automatically discharged;

Model	XY-AI-398D
Air supply	0.6Mpa
Power supply	7.5Kw 380V 50HZ
Speed	8-20 bundling bag/min
Single roll size	Diameter:Ø90-120mm Height:90-140mm
Bundling Size	L(270-600)W(180-240)H(90-120) mm 12,18,30,48 rolls/bundling bag
Machine size	8000x1800x1700(LxWxH)

Q: Are you trading company or manufacturer
A: We are factory.

Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 60-90 days if the goods are not in stock, it is according to
quantity.

Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.

Fujian Xinyun Machinery Development Co.,Ltd is good at Paper Converting Machinery Manufacture.

Professional supplier of:

1) Toilet Paper Machine (1.2m--2.8m width of parent roll, Customize Service)
2) Roll Kitchen Paper Towel Machine (1.2m--2.8m width of parent roll, Customize Service)
3) Facial Tissue Machine (2-14 output lanes)
4) Napkin Paper machine(L-fold, 1/4-fold, 1/6-fold, 1/8-fold and other multi-fold type)
5) Hand Towel Paper Machine(C-fold, V-fold and N/Z fold type)
6) Pocket Tissue Machine(mini and standard size)
7) All kinds of Tissue Paper Cutting and Packing Machine
8) Another Household Paper Equipments and Production Line.
