    High Speed Wall Type Toilet Paper Making Machine

    Ask Lasest Price
    Brand Name : XINYUN
    Model Number : XY-TQ-B
    Certification : CE
    Price : USD 23160- 100000Set
    Payment Terms : T/T
    Delivery Time : Within 70 days after receipt of the deposit.
    • Product Details
    • Company Profile

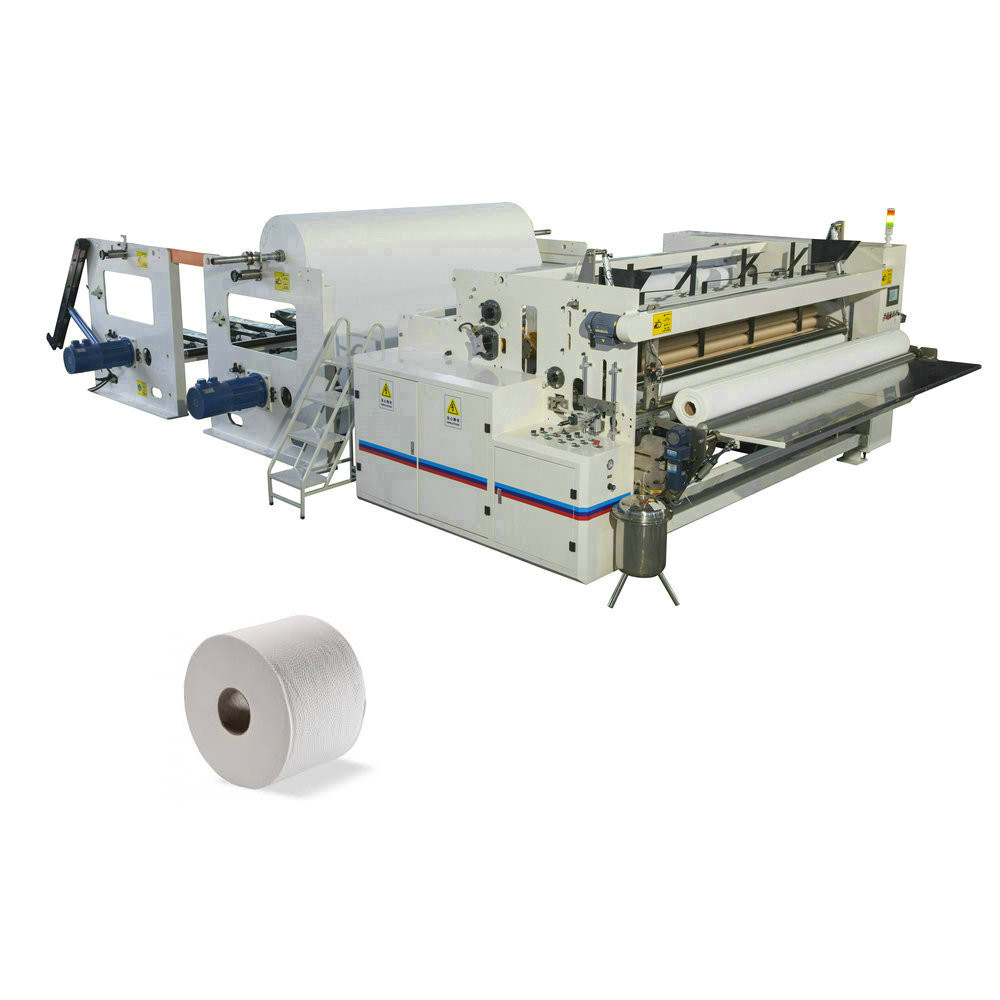

    High Speed Wall Type Toilet Paper Making Machine

    XY-TQ-B High Speed Wall Type Toilet Paper Making Machine

    High Speed Wall Type Toilet Paper Making Machine

    Outline:

    The Automatic Wrapper Type High Speed Toilet Paper Making Machine is designed specifically for processing toilet paper rolls and maxirolls. Equipped with a core feeding unit, this machine transforms jumbo roll raw materials into logs through full embossing or edge embossing, followed by perforation, end cutting, and tail glue spraying. It seamlessly integrates with cutting and packing machines to produce the final products. The machine is PLC-controlled, enabling operators to manage the entire automated process via a touch screen with ease, thus reducing labor costs. Moreover, we offer customizations to meet the specific requirements of our clients.


    Functions and Features --- Wall Type Automatic Rewinding Machine:

    1.This machine is for making toilet paper rolls, the whole structure is wall-type, which make machine running stable at high speed, and noiseless.

    2. Perforation distance is adjustable to meet different distance needs.

    3. Automatic core feeding system, automatic pushing the log after rewinding, then rewinding the new log again.

    4. Automatic edge-trimming, glue spraying and sealing synchronously in one time. Leaving 10-18mm tail, easy to rewind again, so reducing shortcut waste and save the cost.

    5. Adopts international advanced PLC programmable controlling technique, man-machine interface operation, data set and parametric fault shows on touch screen.

    6. Adopts 4 pieces high Precision spiral knives, low noise, clear perforation, adopt gearbox to have bigger range.

    7. Two wall type back stands, pneumatic lifting system, with wide driving flat belts; each jumbo roll can be adjusted independently.

    8. Adopt jogging switches for wearing the paper, easy and safe to operate.


    Main Technical Parameters:

    Jumbo Roll Max Width2800mm (Other size can be specified)
    Jumbo Roll DiameterΦ1100mm(Other size can be specified)
    Jumbo Roll Inner Diameter3inches(76.2mm) (Other size can be specified)
    Perforation Distance4 anvil Blades(115mm)(Other size can be specified)
    Finished Product DiameterΦ90~φ280mm
    Finished Product Core Diameterφ38~φ76mm
    Production Speed0~230m/min
    Program ControllerPLC(DELTA OR INVT need to confirm)
    Unwind Stands1 or 3 Stands(Need to be specified)
    Pneumatic System3HP Air Compressor, Minimum Pressure: 5kg/cm 2Pa(Provide by user)
    Main Power14KW 380V 50HZ
    Dimension7000*4000*1900(L*W*H)
    WeightAbout 7T
    Edge-Line EmbossingSteel to steel (Pneumatic Control)
    Full EmbossmentSteel to rubber

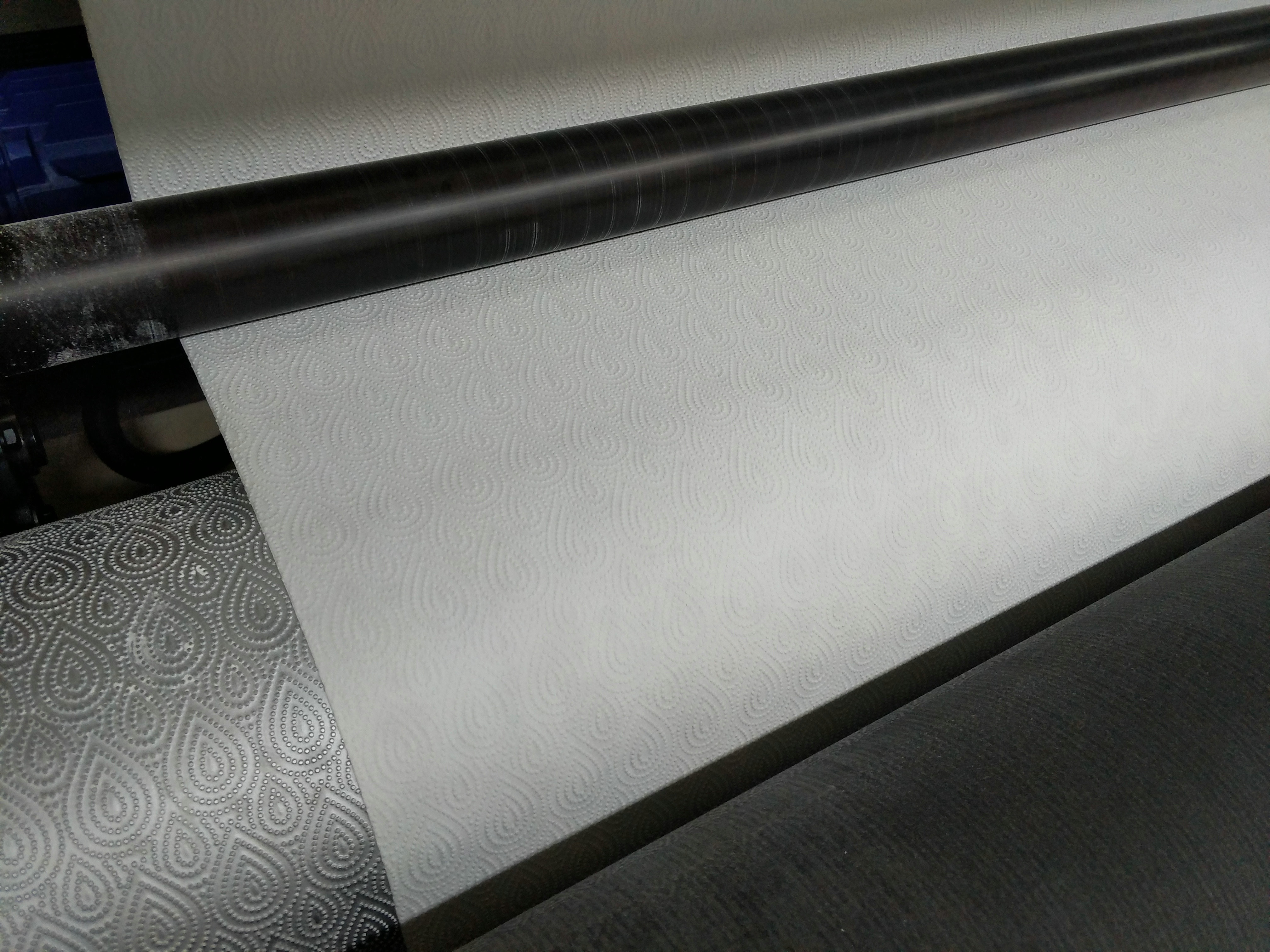

    Detail Pictures:

    High Speed Wall Type Toilet Paper Making MachineHigh Speed Wall Type Toilet Paper Making MachineHigh Speed Wall Type Toilet Paper Making MachineHigh Speed Wall Type Toilet Paper Making Machine


    FAQ:
    Q: Are you trading company or manufacturer?
    A: We are factory.
    Q: How long is your delivery time?
    A: Generally it is 5-10 days if the goods are in stock. Or it is 60-90 days if the goods are not in stock, it is according to quantity.
    Q: Do you provide samples? Is it free or extra?
    A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
    Q: What is your terms of payment?
    A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
