High performance automatic toilet paper roll rewinding machine at factory price

XY-TQ-B High-performance automatic toilet paper roll rewinding machine at factory price

Product Description

The automatic high-speed toilet paper/maxi roll rewinding machine is designed for processing toilet paper rolls and maxi rolls.

This machine features a core feeding unit. It processes raw material from jumbo rolls through steps such as full embossing or edge embossing, perforation, end cutting, and tail glue spraying, ultimately forming a log. The logs can then be further processed with cutting and packing machines to produce finished products.

The machine is PLC-controlled and operated via a touch screen, making the entire process fully automated, user-friendly, and cost-efficient by reducing labor requirements. Additionally, our machine can be customized to meet specific client needs.

Feature and Functions

1. Automatic core feeding system, automatic log pusher after rewinding, then rewinding the new log again.
2. Automatic edge-trimming, core feeding, glue spraying, and sealing synchronously at one time. Leaving a 10-18mm tail, easy
to rewind again, reducing shortcut waste and saving costs.
3. Adopts international advanced PLC programmable controlling technique, man-machine interface operation, data set, and parametric fault shows on the touch screen.
4. Adopts 4 pieces high Precision spiral knives, low noise, clear perforation, adopt gearbox to have a bigger range.

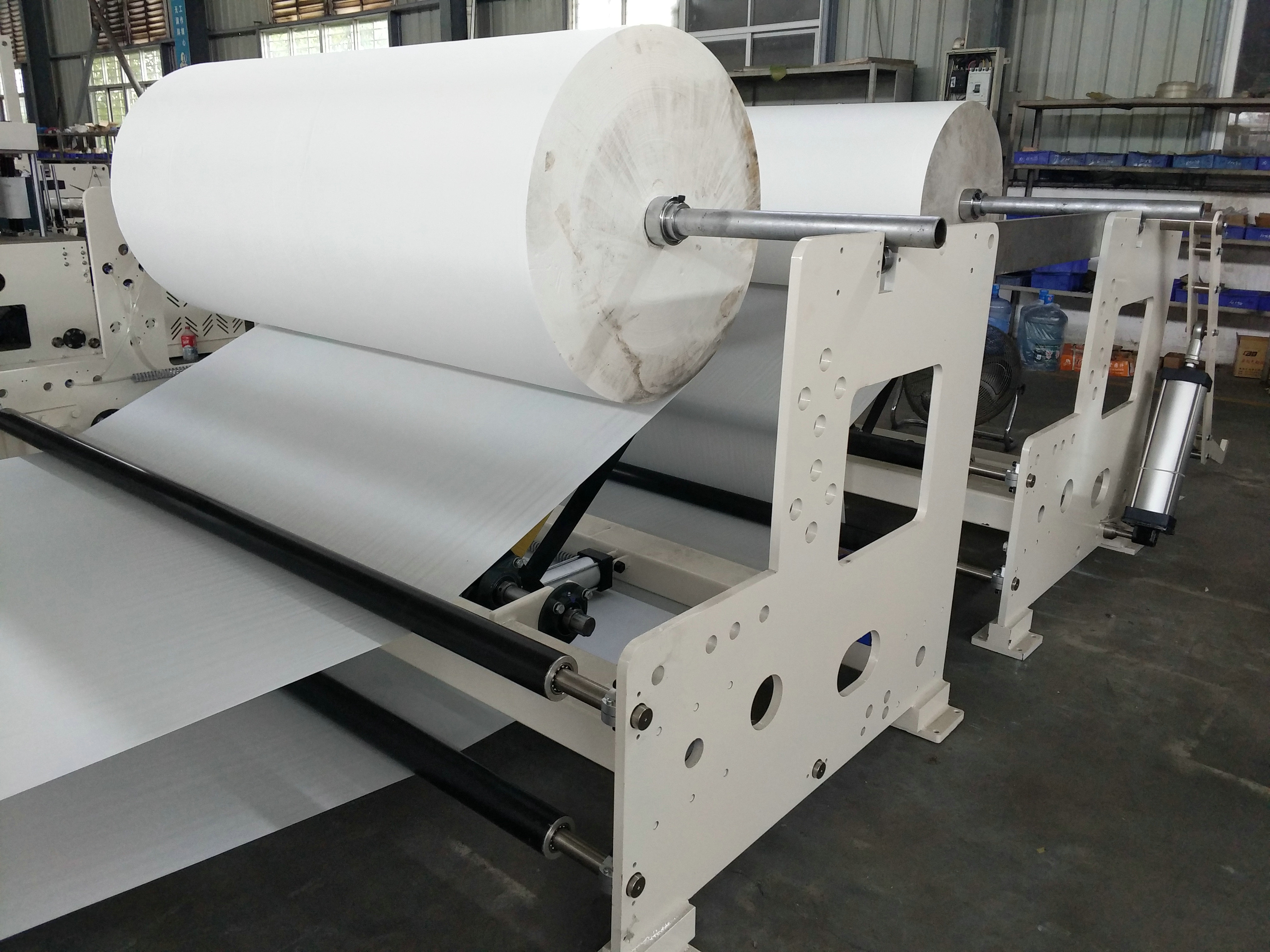

5. Three horizontal type back stands, pneumatic loading system, with wide driving flat belts; each jumbo roll can be adjusted independently.
6. Embossing Unit: adopt point to point embossing rollers, making the two layers match well, the paper is soft and has clear patterns
7. Adopt jogging switches for wearing the paper, easy and safe to operate.

Machine Parameter

Detailed Photos

Aftersale Service

• We ensure that any customer inquiries are responded to within 24 hours.
• All machines sold come with a one-year free warranty and lifetime maintenance support.
• Each machine is accompanied by a USB drive containing an operation video to help customers operate the machine with ease.
• Upon delivery of the machines, if required, we will send technicians to assist with the installation of the production line.
• The buyer is responsible for covering the technicians' round-trip airfare from our factory in China to the buyer's location, as well as expenses for visas, food, transportation, and accommodation in the buyer’s city.

Company Information

Fujian Xinyun Machinery Development Co., Ltd is good at Paper Converting Machinery Manufacturing.
Professional supplier of:
1) Toilet Paper Machine (1.2m--2.8m width of parent roll, Customize Service)
2) Roll Kitchen Paper Towel Machine (1.2m--2.8m width of parent roll, Customize Service)
3) Facial Tissue Machine (2-14 output lanes)
4)Napkin Paper machine(L-fold, 1/4-fold, 1/6-fold, 1/8-fold and other multi-fold type)
5) Hand Towel Paper Machine(C-fold, V-fold and N/Z fold type)
6) Pocket Tissue Machine(mini and standard size)
7) All kinds of Tissue Paper Cutting and Packing Machine
8) Another Household Paper Equipments and Production Line.

Fujian Xinyun Machinery Development Co., Ltd.
