    380V 50Hz 3phases Automatic Single Toilet Paper Roll Film Wrapping Machine

    Ask Lasest Price
    Brand Name : Xinyun
    Model Number : XY-AI-503IZ
    Certification : CE
    Price : USD 28800-33800 set
    Payment Terms : L/C, T/T
    Supply Ability : 130 set/year
    Delivery Time : 60days
    • Product Details
    • Company Profile

    380V 50Hz 3phases Automatic Single Toilet Paper Roll Film Wrapping Machine

    XY-AI-503IZ Automatic single roll toilet paper film packaging machine at a good price


    Product Description


    XY-AI-503IZ The single-roll paper automatic packing machine is designed for packing single toilet paper rolls, both with and without cores, as well as kitchen tissues. It offers fully automatic packing operations, including paper feeding, film feeding, longitudinal sealing, cutting, coreless paper exhaust, and reversing actions. These functions are all controlled by a servo system, ensuring high efficiency, simple operation, and versatile specifications. The machine also features quick changeover capabilities, convenient maintenance, and low operating costs. For core toilet paper, the machine achieves a stable production speed of up to 200 pieces per minute, while for coreless toilet paper, it operates at up to 150 pieces per minute. The machine allows for electronic setting and easy conversion for tissue lengths ranging from 80 mm to 195 mm.


    Video Link: https://youtu.be/ifHmmLdCMJU



    Product Parameter


    Packing speed100-200packs/min
    Max width of the film430mm
    Toilet roll dimensionLength:80-220mm Diameter:80-130mm
    Total Power15.5KW 380V 50HZ 3phases
    Weight1800KG
    Machine size(L*W*H)5500*3300*1600mm
    Material of filmBOPP, SPP, CPP(as usual, use CPP)
    Thickness of film0.018-0.03mm

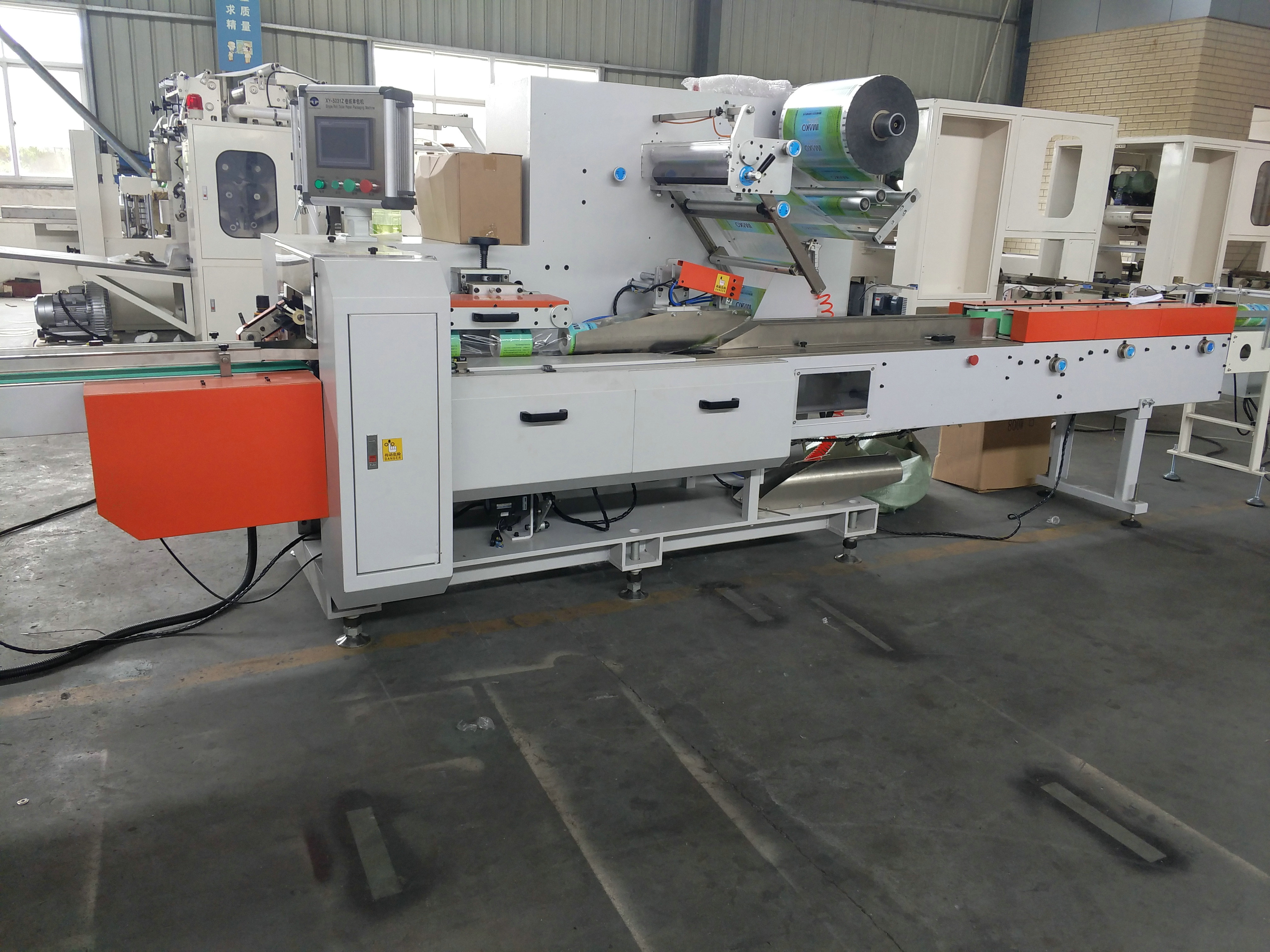

    Detailed Pictures


    Aftersale service

    • We guarantee a response to all customer inquiries within 24 hours.
    • Every machine we sell comes with a one-year free warranty and lifetime maintenance support.
    • Each machine will be provided with a USB drive containing an operation video, which will help customers operate the equipment easily.
    • If required, our technicians will visit the buyer's site to install the production line after the machines arrive.
    • The buyer is responsible for covering the round-trip airfare from our factory in China to the buyer's location, along with the costs of visas, meals, transportation, and accommodation during the technician's stay.
