    High-Speed Automatic Cutting Machine for Jumbo Toilet Paper Rolls and Kitchen Towels

    Ask Lasest Price
    Brand Name : Xinyun
    Model Number : XY-AI-500
    Certification : CE
    Price : USD 22000-28800 set
    Payment Terms : T/T, L/C
    Supply Ability : 200 sets per year
    Delivery Time : 60days
    • Product Details
    • Company Profile

    High-Speed Automatic Cutting Machine for Jumbo Toilet Paper Rolls and Kitchen Towels

    XY-AI-500 High-Speed Automatic Cutting Machine for Jumbo Toilet Paper Rolls and Kitchen Towels

    Product Description
    The equipment is the latest research and development which is the company's extension with the current market situation. Using PLC program control, big screen true color human-computer interface. The precise servo control feed length, electromechanical integration control, and other international advanced technology can automatically detect each key action, have a good fault information prompt system, and make the whole production line achieve the best working state.


    Feature& functions
    1. The main motor uses the inverter-independent drive.
    2. For one set of machines, the cutting diameter of the paper roll is adjustable as 100~280mm.
    3. The equipment adopts an automatic sharpening system, and the grinding wheel can be automatic feeding adjustment according to the blade loss.
    4. The grinding system is equipped with an independent dust removal device to ensure the working environment.
    5. The band saw adopts a hydraulic tension system to ensure the tension of the band saw.
    6. It will be an automatic stop and alarm when the knife is broken.
    7. A high-precision servo system is used to ensure the quality of finished products.
    8. According to the raw materials and the length of finished products, the number of finished products can be calculated automatically.
    9. The device stops working and prompts the interface when the input data is wrong.
    10. Using a band saw to cut down and reduce the cost of user use.
    11. The thickness of the finished paper core should be less than 3mm(Suggestion).


    Product Parameter

    Cutting speed15-30cuts/minute
    Cutting channelsingle channel
    Cutting bladeband saw blade(18,000--20,000 rolls/blade)
    Cutting blade size5180*90*1.2
    Log length≦2200mm or ≦2850mm
    Tolerance±2mm
    Cutting length≦300mm
    Cutting diameter150-250mm(Adjustable)
    Thickness of paper core≦3 mm
    Power supply15KW 3 phase 4line 380V 50HZ
    Machine weight2700KG
    Overall size of the machine

    4600*2350*2200mm(2.2m jumbo roll)
    5300*2350*2200mm (2.2-2.85m jumbo roll)

    Separated size

    Main machine: 4600*1700*2200mm(2.2m jumbo roll)
    Paper storage: 1500*1650*900mm

    Main machine: 5300*1700*2000mm(2.2-3m jumbo roll)
    Paper storage: 1700*1650*900mm

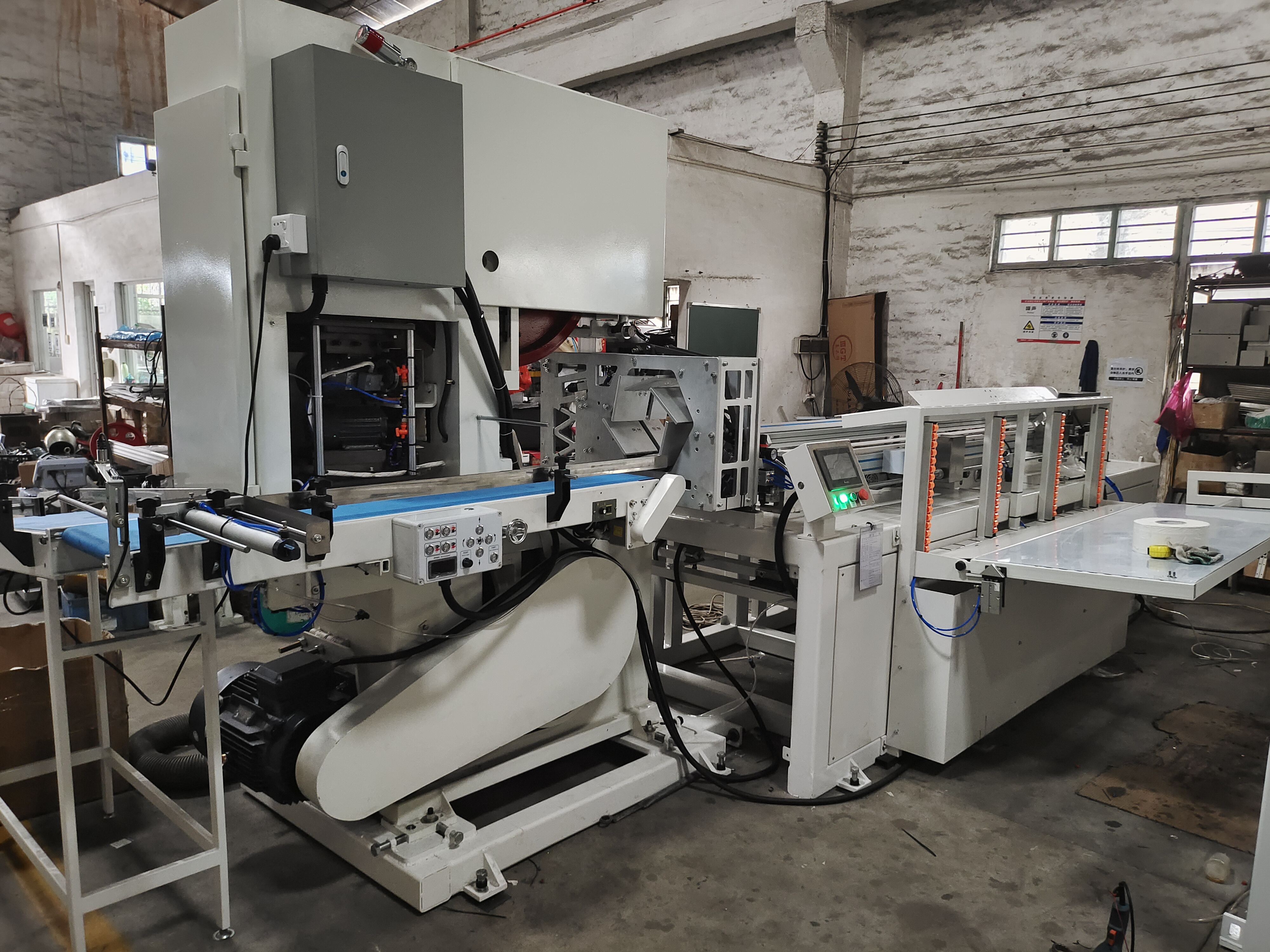

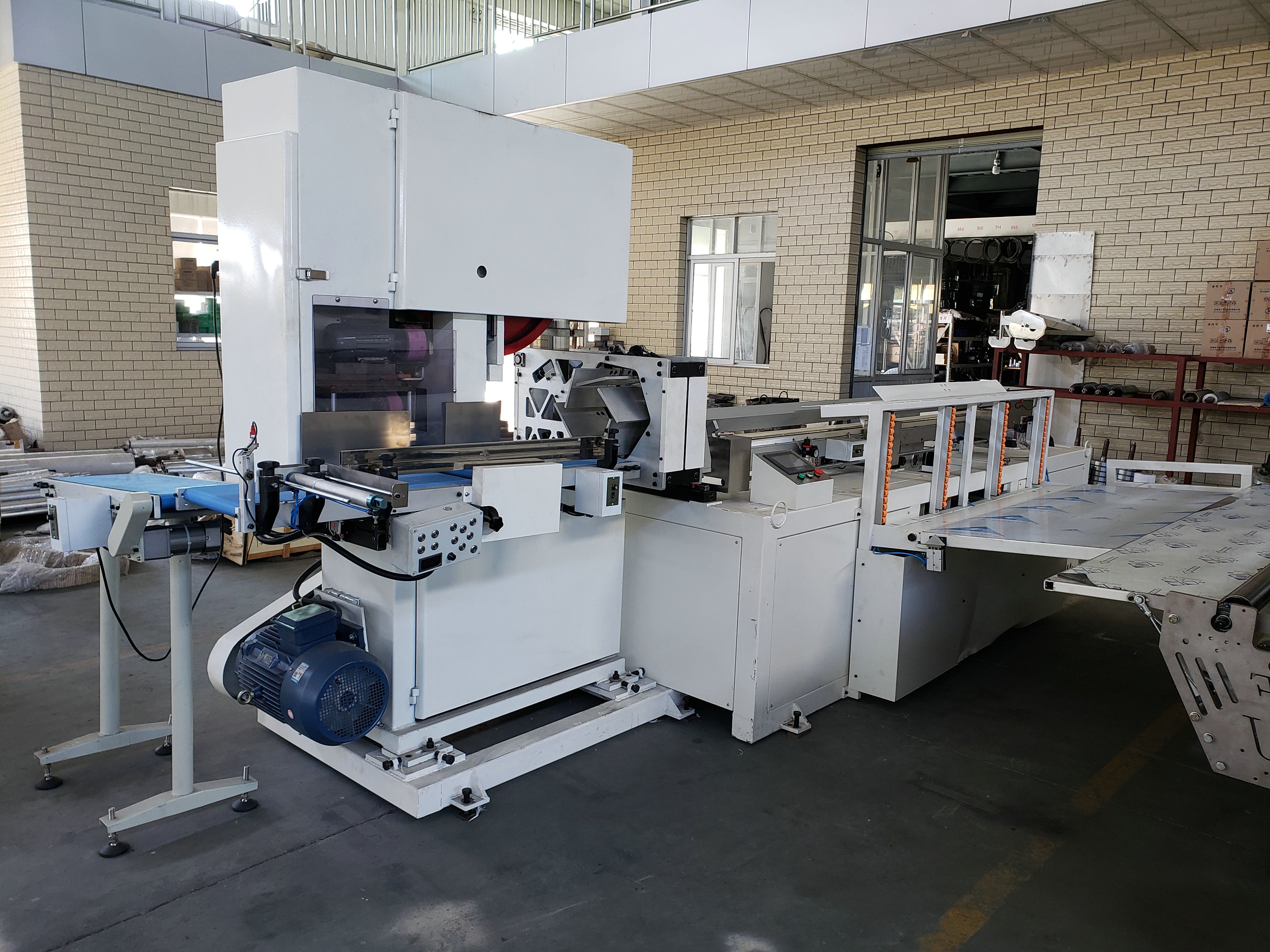

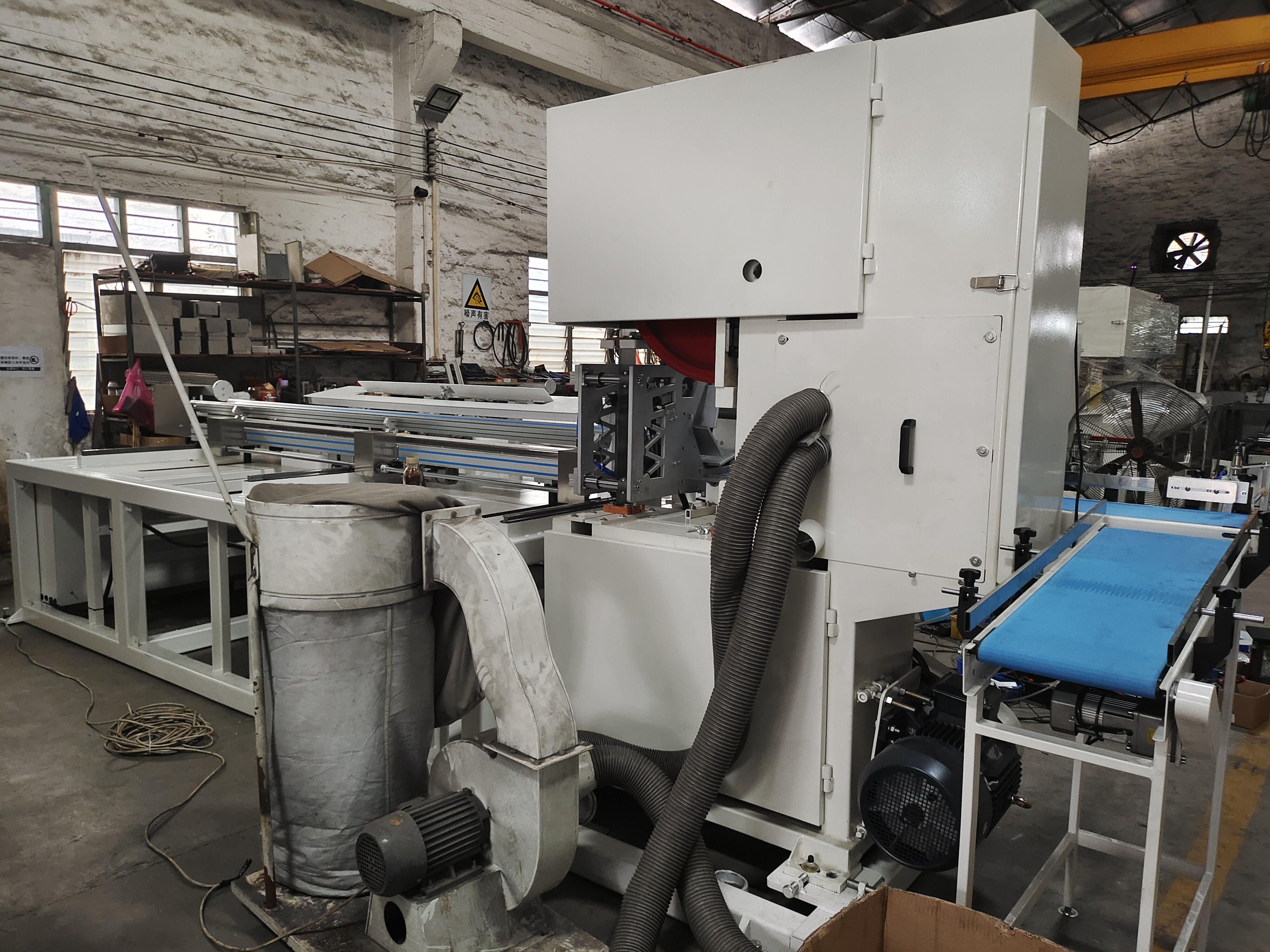

    Detailed Picture




    Company Profile

    Fujian Xinyun Machinery Development Co., Ltd is good at Paper Converting Machinery manufacturing.
    Professional supplier of:
    1) Toilet Paper Machine (1.2m--2.8m width of parent roll, Customize Service)
    2) Roll Kitchen Paper Towel Machine (1.2m--2.8m width of parent roll, Customize Service)
    3) Facial Tissue Machine (2-14 output lanes)
    4)Napkin Paper machine(L-fold, 1/4-fold, 1/6-fold, 1/8-fold and other multi-fold type)
    5) Hand Towel Paper Machine(C-fold, V-fold and N/Z fold type)
    6) Pocket Tissue Machine(mini and standard size)
    7) All kinds of Tissue Paper Cutting and Packing Machine
    8) Another Household Paper Equipments and Production Line.
