Professional Manufacturer of Tissue Paper Making Machine.
1 Years
| Ask Lasest Price | |
| Brand Name : | Xinyun |
| Model Number : | XY-AI-280 |
| Certification : | CE |
| Price : | USD 27800-29800USD set |
| Payment Terms : | L/C, T/T |
| Supply Ability : | 120 sets per year |
| Delivery Time : | 60days |
XY-AI-280 Good Price High-Efficiency Tissue Paper Roll Cutting Machine for Large Production Lines
Product Description
XY-AI-280 Double Channel Log Saw Machine is used for cutting toilet paper rolls and kitchen towel paper rolls, it’s with high automation and is efficient. Adopts advanced servo driving system, frequency conversion speed regulating, PLC control, and touching screen operation.
Function & Functions
1. Automatic blade grinding system, quickly setting parameters on PLC.
2. The sharpen wheel can grind according to the wear degree.
3. Two Logs are feeding automatically, cutting then pushing.
4. Shortcuts can be kicked off from the quality products.
5. Equipped with two sets of clamping channels, easy to change.
Product Parameter
| Model | XY-AI-280 Log Saw Cutting Machine(Double Channel) |
| Jumbo Roll Width | 1750mm (Other size can be specified) |
| Jumbo Roll Diameter | Φ95~φ105mm…125-135mm (Other size can be specified) max. 140mm |
| Design Speed | 150cuts/min |
| Stable Speed | 100cuts/min |
| Grinding System | Pneumatic Sharpen, grinding time can be set |
| Driving System | Delta Servo Motor |
| Power | 11KW |
| Overall Dimension | 6500*2500*2000mm(Other size depends on model and configuration) |
| Blade Diameter | φ610*4.7mm |
| Voltage | 380V 50HZ |
| Weight | About 4.5T |

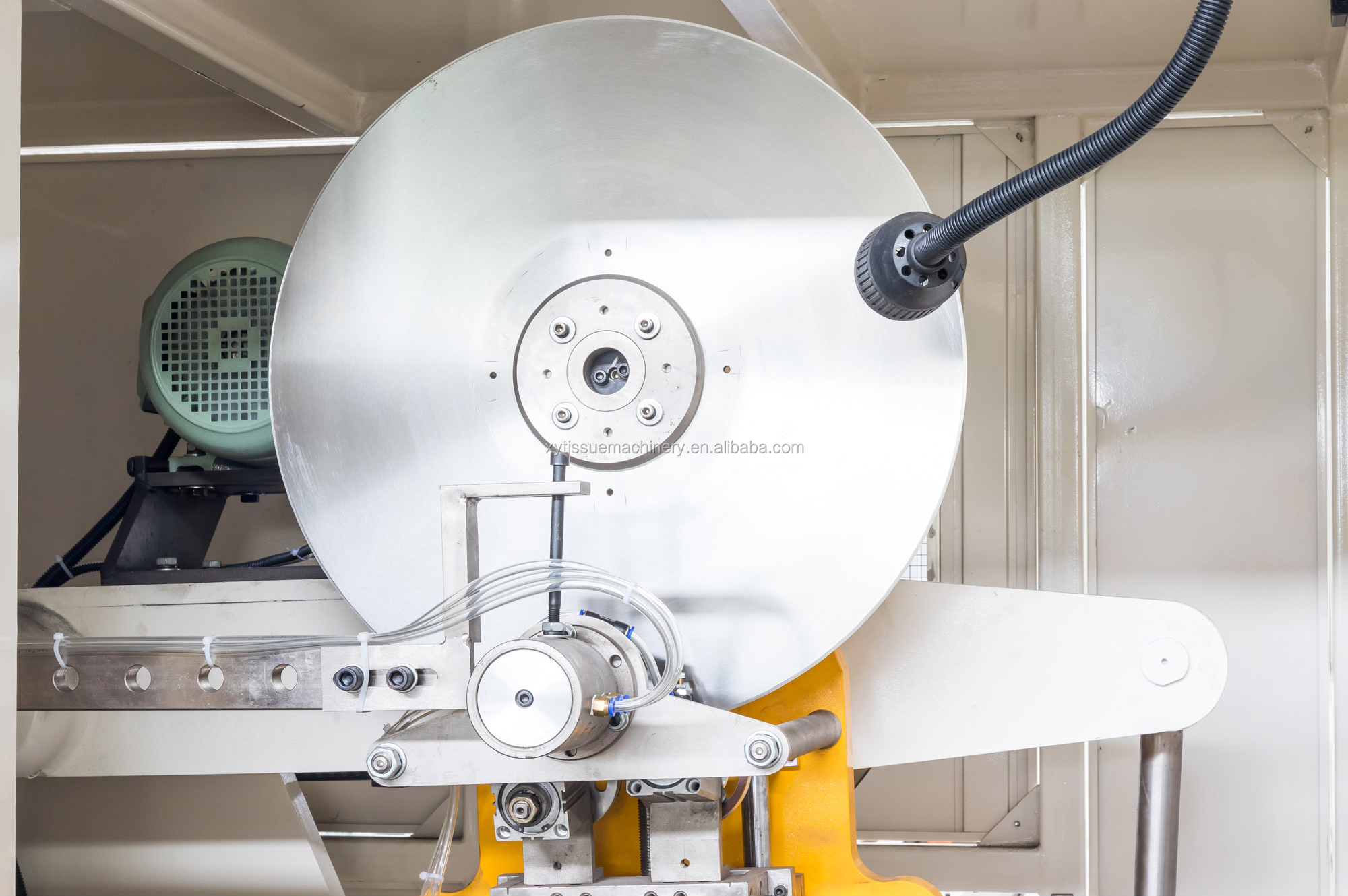

Detailed Pictures
Related Product
XY-TQ-B Automatic toilet paper making machine
An automatic toilet paper rewinding machine is for toilet paper
roll processing. The machine has a core feeding unit and can do
both with and without the core. Raw material from the jumbo roll
after full embossing or edge embossing, then perforation, end
cutting, and a spray of the tail glue become a log. Then it can
work with a cutting machine and packing machine to become the
finished products. The machine is controlled by PLC, people operate
it through the touch screen, the whole process is automatic, easy
to operate, and lowers the man cost. And Our machine can be
specially made according to client's requirements.
The production process is Unreeling - Embossing - Perforating-
Lamination- Rewinding- Tail-gluing- Edge trimming---Automatic core
loading.
VIDEO LINK: https://youtu.be/LxLvAe0L-Hw
XY-AI-398A Semi-automatic toilet paper packing machine
Packing and sealing are pretty and tidy. The machine can be
operated with full-automation and semi-automation. The machine with
a conveyor can be connected to an automatic toilet roll packing
machine with a conveyor. This allows the machine to have high
capacity and therefore save labor and reduce production costs.
VIDEO LINK: https://youtu.be/kw6aMQYSgSs

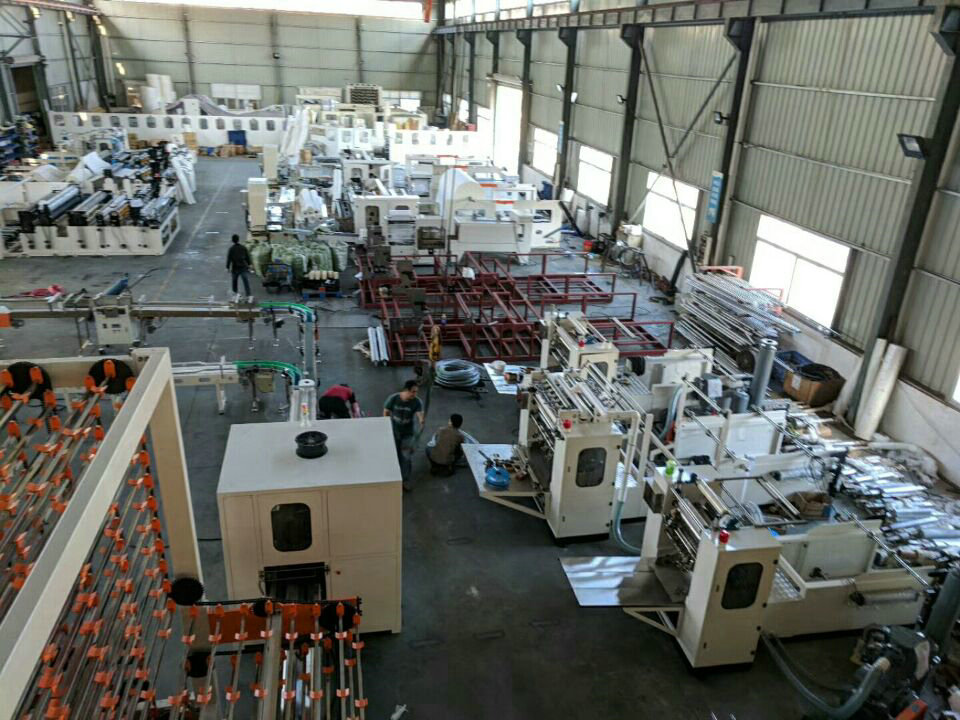

Work Shop
Company Profile
Fujian Xinyun Machinery Development Co., Ltd is good at Paper
Converting Machinery manufacturing.
Professional supplier of:
1) Toilet Paper Machine (1.2m--2.8m width of parent roll, Customize
Service)
2) Roll Kitchen Paper Towel Machine (1.2m--2.8m width of parent
roll, Customize Service)
3) Facial Tissue Machine (2-14 output lanes)
4)Napkin Paper machine(L-fold, 1/4-fold, 1/6-fold, 1/8-fold and
other multi-fold type)
5) Hand Towel Paper Machine(C-fold, V-fold and N/Z fold type)
6) Pocket Tissue Machine(mini and standard size)
7) All kinds of Tissue Paper Cutting and Packing Machine
8) Another Household Paper Equipments and Production Line.
Welcome to send us An Inquiry, we will reply as soon as possible, thank you.
|
|
