XY-TQ-A-D Good Price Automatic Small Paper Toilet Tissue Making Machine
Production Line
This production line consists of Automatic Toilet Paper Maxi Roll
Rewinding Machine, Double Channel Log Saw Machine and
Semi-Automatic One Layer Multiple Rolls Packing Machine and Double
Layer Multi Rolls Packing Machine. It converts the jumbo roll into
the finished rolls. The whole line work smoothly and run stable,
saving the labor cost and reducing the labor strength, it’s best
choice for the producing hygienic paper products.
XY-TQ-2800B Automatic Wrapper-type High Speed Toilet Paper Machine
Outline
Automatic Wrapper Type High Speed Toilet Paper /Maxi Roll Rewinding
Machine is for toilet paper roll/maxiroll processing. Machine have
core feeding unit. Raw material from jumbo roll after full
embossing or edge embossing, then perforation, end cutting and
spray the tail glue become a log. Then it can working with cutting
machine and packing machine to become the finished products. The
machine is controlled by PLC, people operate it through touch
screen, the whole process is automatic, easy to operate, lower the
man cost. And Our machine can special-made according to clients’
requirements.
Main Technical Parameters
| Jumbo Roll Max Width | 2800mm (Other size can be specified) |
| Jumbo Roll Diameter | Φ1100mm(Other size can be specified) |
| Jumbo Roll Inner Diameter | 3inches(76.2mm) (Other size can be specified) |
| Perforation Distance | 4 anvil Blades(115mm)(Other size can be specified) |
| Finished Product Diameter | Φ90~φ280mm |
| Finished Product Core Diameter | φ38~φ76mm |
| Production Speed | 0~230m/min |
| Program Controller | PLC(DELTA OR INVT need to confirm) |
| Unwind Stands | 1 or 3 Stands(Need to be specified) |
| Pneumatic System | 3HP Air Compressor, Minimum Pressure: 5kg/cm 2Pa(Provide by user) |
| Main Power | 14KW 380V 50HZ |
| Dimension | 7000*4000*1900(L*W*H) |
| Weight | About 7T |
| Edge-Line Embossing | Steel to steel (Pneumatic Control) |
| Full Embossment | Steel to rubber. |
XY-203 Log Accumulator Technical Parameter
Main Technical Parameters:
| Machine Model | XY-203 Log Accumulator |
| Log Width | 1750~2800mm(Other size can be specified) |
| Log Diameter | Φ95mm~Φ140mm |
| Log Standings | 150-160Logs |
| Accumulate speed | 20 logs/min |
| Log Qty | 40-160logs(need to be ordered) |
| Overall Dimensions | 4000*3000*5500mm |
| Programming Controller | PLC(Delta) |

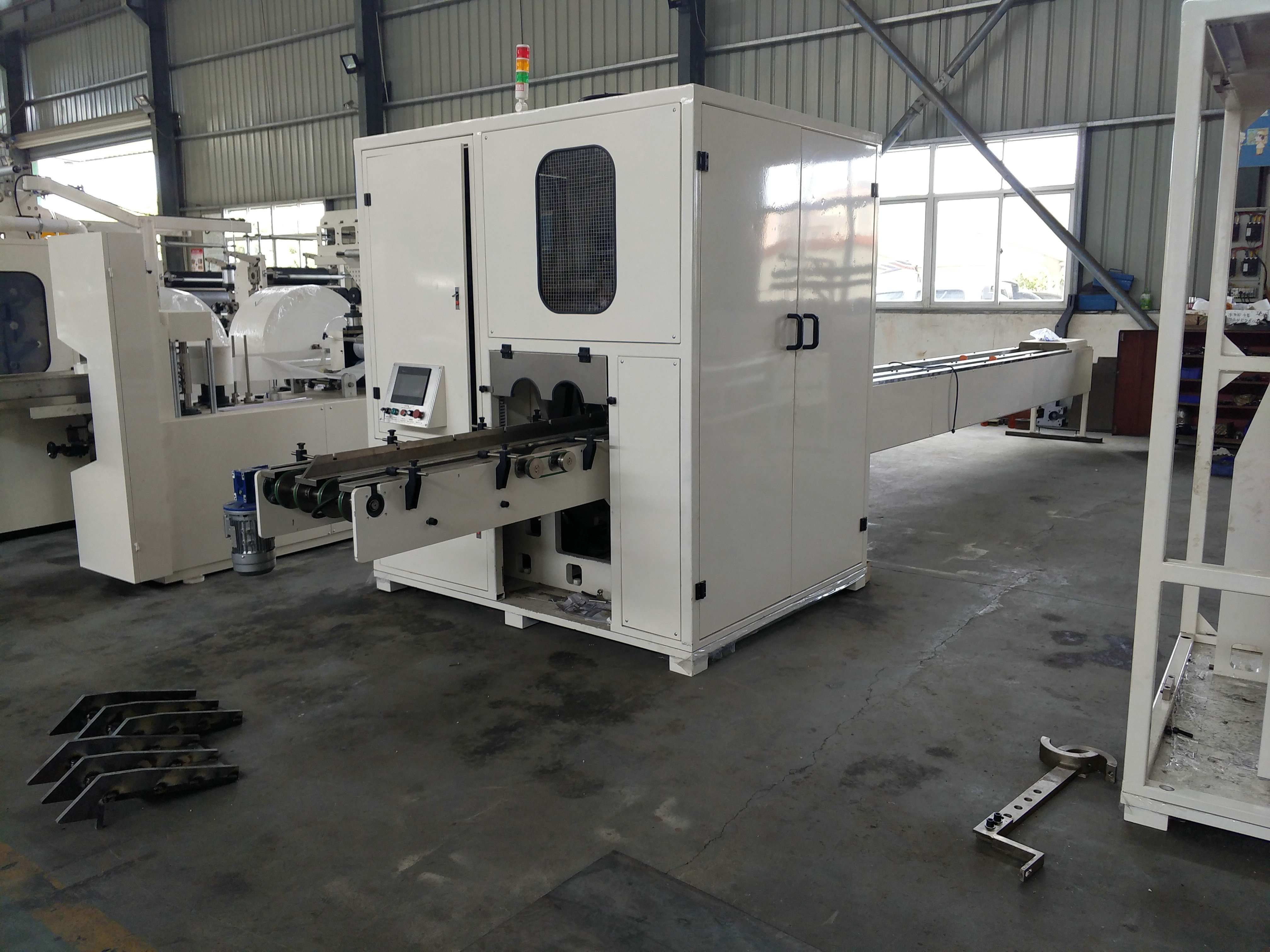

XY-AI-280 Automatic Double Channel Log Saw Machine
XY-AI-280 Double Channel Log Saw Machine is used for cutting the
toilet paper roll and kitchen towel paper roll, it’s with high
automation and efficient. Adopts advanced servo driving system,
frequency conversion speed regulating, PLC control and touching
screen operation.
Main Technical Parameters:
| Model | XY-AI-280 Log Saw Cutting Machine(Double Channel) |
| Jumbo Roll Width | 1750mm (Other size can be specified) |
| Jumbo Roll Diameter | Φ105~φ115mm (Other size can be specified) |
| Design Speed | 150cuts/min |
| Stable Speed | 100cuts/min |
| Grinding System | Pneumatic Sharpen, grinding time can be set |
| Driving System | Delta Servo Motor |
| Power | 11KW |
| Overall Dimension | 6500*2500*2000mm(Other size depends on model and configuration) |
| Blade Diameter | φ610*4.7mm |
| Voltage | 380V 50HZ |
| Weight | About 4.5T |
XY-AI-398A Semi Auto Multiple Rolls Packing Machine
Main Technical Parameter:
Voltage | 220V 50HZ |
Main Power | 0.74KW |
Sealing Transformer Power | 0.45KW |
Total Power | 1.19KW |
Air Pressure | 0.4-0.5MPA |

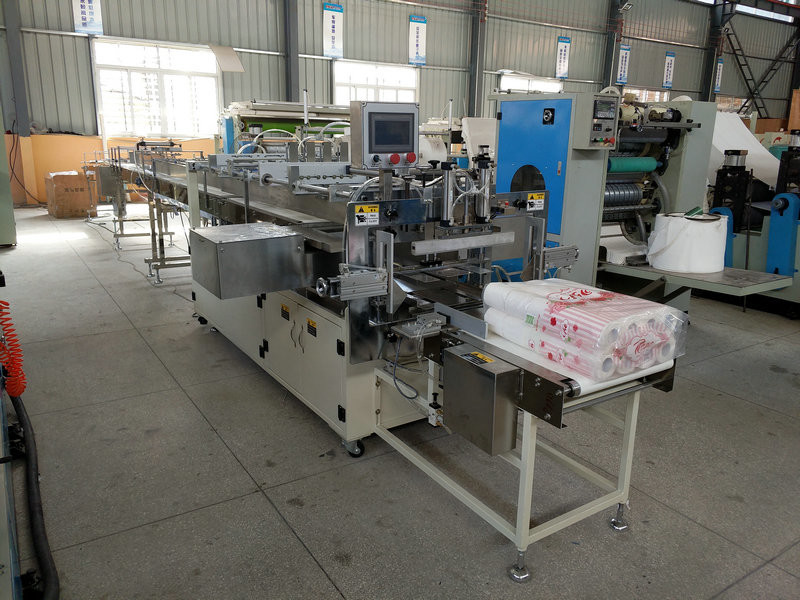

XY-AI-D653 Semi-auto Double-layer Multi-roll Toilet Paper Roll
Packing Machine
Main Features:
1. This equipment can connect with auto cutting machine to be a
production line. Only need one person bagging . Conveyor belt
automatic conveying, automatic stacking, paper feeding, bagging,
sealing and cutting.
2. Adopt PLC computer programming control, double frequency
control, touch-screen display parameters, easy to set, temperature
control more accurate, more effective protection of hot wire and
high temperature resistant adhesive tape.
3. The sealing of package is beautiful and tidy, and is connected
with automatic machine to realize the mechanized conveying paper.
It only need worker bagging. The speed of whole machine is faster,
save labor, reduce production cost, and improve production
benefits.
4. Packing speed: 4-6 bag/min
The machine has the advantages of reasonable structure, stable
performance, strong material and durability; The main parts of
control parts are imported high-quality components, and the rest
are the national standard high-quality components.
Main Technical Parameter:
| Working speed(bag/min) | 4-6bags/min | |
| Arrangement mode | 2 row * (4-6) ranks *2 layer | |
| Specification of one roll | Diameter:90mm Height:90mm | |
| Packaging method | Prefabricated bag | |
| Feed control | PLC control automatic feeding | |
| Bagging method | Manual | |
| Packing material | PE,0PP | |
| Sealing quality | no disengage, no melting failure | |
| Film thickness(mm) | 8mm above | |
| Total power | 2.2KW | |
| Supply voltage | 220V 50HZ | |
| Air pressure | 0.5MPA | |
Weight(kg) | 750 | |
Dimension for main machine(L*W*H)mm | 5000*1800*1500 | |
