    Efficient Automatic Tissue Roll Production Line for Medium Scale Manufacturers

    Ask Lasest Price
    Brand Name : Xinyun
    Model Number : XY-TQ-A-H
    Certification : CE
    Price : USD 59520-98090 set
    Payment Terms : L/C, T/T
    Supply Ability : 150 sets per year
    Delivery Time : 70days
    • Product Details
    • Company Profile

    Efficient Automatic Tissue Roll Production Line for Medium Scale Manufacturers

    XY-TQ-A-H Automatic maxi toilet paper roll big tissue roll production line for small business


    Product Description


    This production line consists of Wall Type Automatic Rewinding Machine, a Band saw cutting machine, and an automatic shrink packing machine From jumbo roll paper to the finished rollers, the whole line works smoothly and runs stable, saving labor costs and reducing the labor strength. It's the best choice for producing maxi roll paper products.

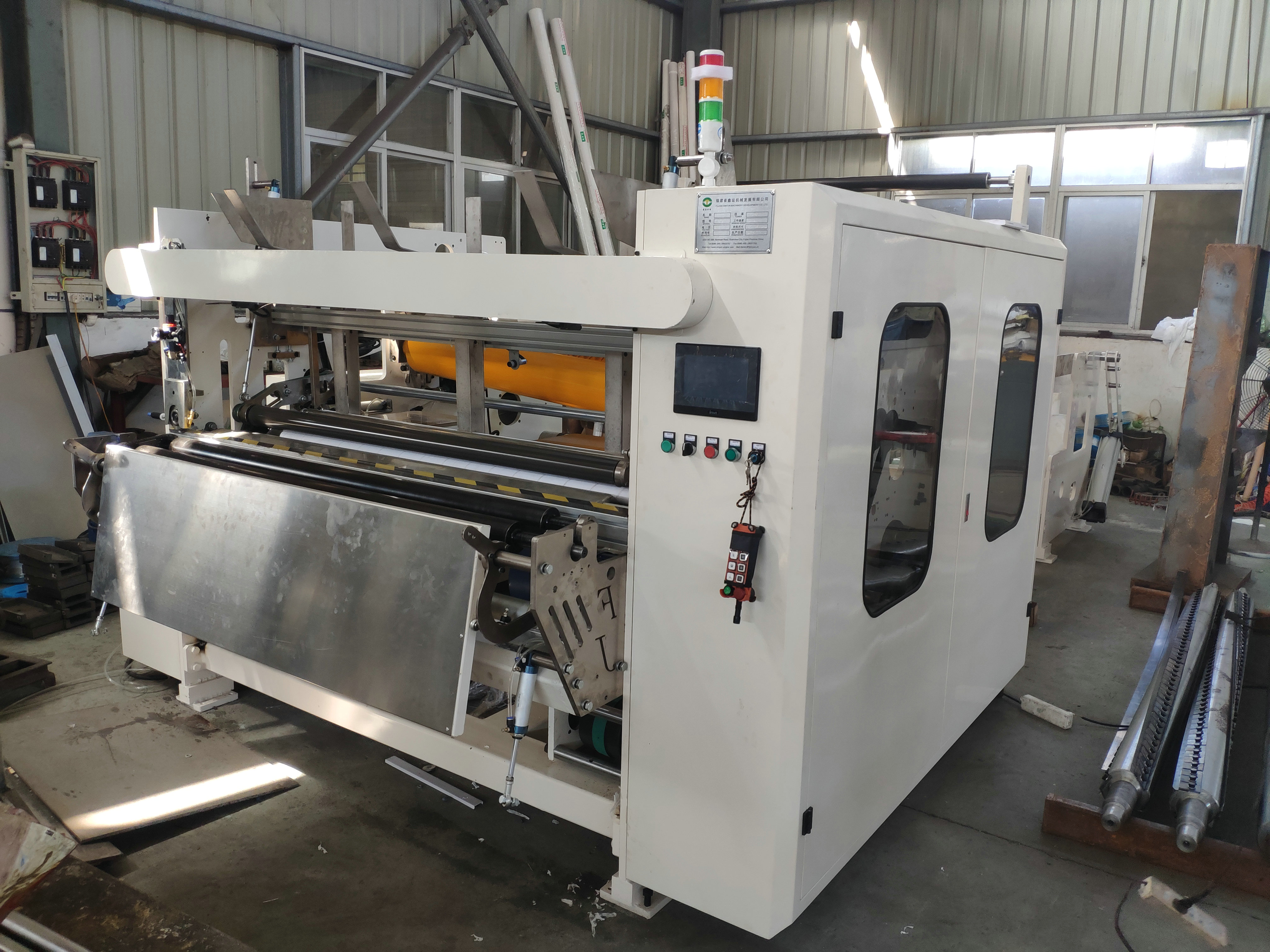

    XY-TQ-B Automatic toilet paper rewinding machine


    Product Description


    Automatic toilet paper rewinding machine is for toilet paper roll processing. The machine has a core feeding unit, and can do both
    with and without core. Raw material from the jumbo roll after full embossing or edge embossing, then perforation, end cutting, and spray the tail glue become a log. Then it can work with cutting and packing machines to become the finished products. PLC controls the machine, people operate it through the touch screen, the whole process is automatic, easy to operate, lower the man cost. And Our machine can be specially made according to clients' requirements.


    The production process is: Unreeling - Embossing - Perforating- Lamination- Rewinding- Tail-gluing- Edge trimming---Automatic core loading.


    Feature &Functions


    1. Automatic core feeding system, automatic log pusher after rewinding, then rewinding the new log again.
    2. Automatic edge-trimming, core feeding, glue spraying, and sealing synchronously in one time. Leaving 10-18mm tail, easy
    to rewind again, so reducing shortcut waste and saving the cost.
    3. Adopts international advanced PLC programmable controlling technique, man-machine interface operation, data set, and parametric fault shows on touch screen.
    4. Adopts 4 pieces high Precision spiral knives, low noise, clear perforation, adopt gearbox to have a bigger range.
    5. Three horizontal type back stands, pneumatic loading system, with wide driving flat belts; each jumbo roll can be adjusted independently.
    6. Embossing Unit: adopt point to point embossing rollers, making the two layers match well, the paper is soft and has clear patterns
    7. Adopt jogging switches for wearing the paper, easy and safe to operate.


    Machines Parameter


    Model
    XY-TQ-B
    Jumbo Roll Width
    1750mm (Other size can be specified)
    Jumbo Roll Diameter
    Φ1200mm(Other size can be specified)
    Jumbo Roll Inner Core Diameter
    3inches(76.2mm)
    Perforation Distance
    4 anvil Blades(115mm.,230mm)(Other size can be specified)
    Finished Product Diameter
    Φ80~φ280mm
    Finished Product Inner Diameter
    φ38~φ76mm
    20Production Speed
    200-230m/min
    Program Controller
    PLC
    Jumbo roll paper stand
    1 or 3 Stands(Need to be specified)
    Pneumatic System
    0.5~0.8MPA(Provide by user)
    Main Power
    18KW
    Overall Dimension
    10000*3000*2000(L*W*H)
    Weight
    About 12T(wallboard structure)(Other size can be specified)
    Jumbo Roll Layers
    1~3plys,14~30gsm Toilet paper or kitchen towel
    Edge-Line Embossing(can be specified)
    Steel to steel (Pneumatic Control)
    Embossment (can be specified)
    Steel to Rubber, Double Sets
    Voltage
    380V 50HZ

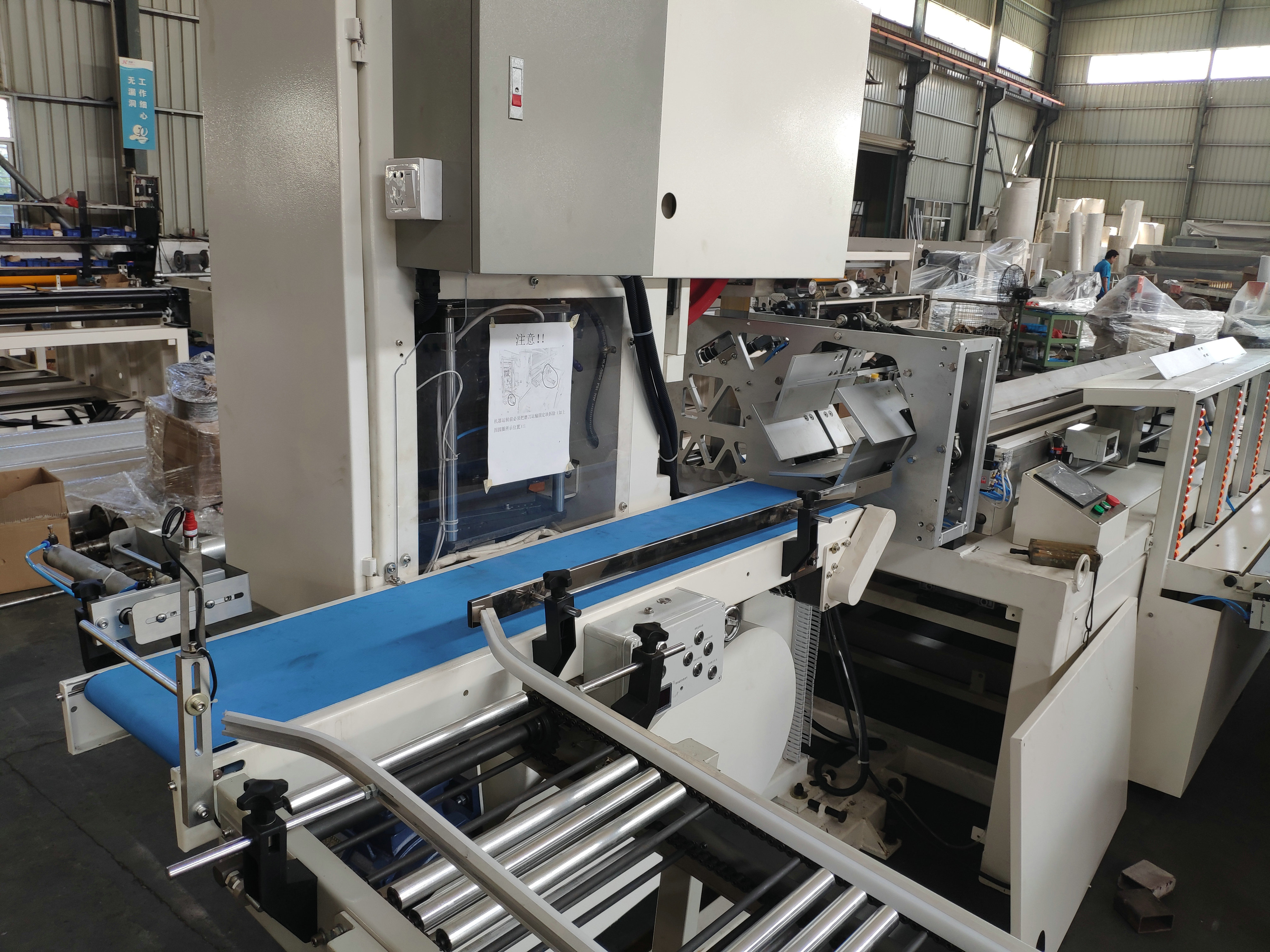

    XY-AI-500 Automatic maxi toilet paper tissue roll cutting machine


    Product Description


    The equipment is the latest research and development which is the extension of the company with the current market situation. Using PLC program control, big screen true color human-computer interface. The precise servo control feed length, electro-mechanical integration control, and other international advanced technology can automatically detect each key action, have good fault information prompt system, and make the whole production line achieve the best working state.


    Feature&Functions


    1. The main motor uses the inverter-independent drive.
    2. For one set of machines, the cutting diameter of the paper roll is adjustable to 150~250mm.
    3. The equipment adopts an automatic sharpening system, the grinding wheel can be automatic feeding
    adjustment according to the blade loss.
    4. The grinding system is equipped with an independent dust removal device to ensure the working environment.
    5. The band saw adopts a hydraulic tension system to ensure the tension of the band saw.
    6. It will be an automatic stop and alarm when the knife is broken.
    7. A high-precision servo system is used to ensure the quality of finished products.
    8. According to the raw materials and the length of finished products, the number of finished products can be calculated automatically.
    9. The device stops working and prompts the interface when the input data is wrong.
    10. Using the band saw to cut down and reduce the cost of user use.
    11. The thickness of the finished paper core should be less than 3mm. (Suggestion)
    Product Parameter
    Cutting speed
    15-30cuts/minute
    Cutting channel
    single channel
    Cutting blade
    band saw blade(18,000--20,000 rolls/blade)
    Cutting blade size
    5180*100*1.05
    Log length
    <=2200mm or <=2850mm
    Tolerance
    ±2mm
    Cutting length
    <=300mm
    Cutting diameter
    100-280mm(Adjustable)
    Thickness of the paper core
    <=3 mm
    Power supply
    15KW 3 phase 4line 380V 50HZ
    Machine weight
    2700KG
    The overall size of the machine
    4600*2350*2200mm(2.2m jumbo roll)
    5300*2350*2200mm (2.2-2.85m jumbo roll)
    Separated size
    Main machine: 4600*1700*2200mm(2.2m jumbo roll)
    Paper storage: 1500*1650*900mm
    Main machine: 5300*1700*2000mm(2.2-3m jumbo roll)
    Paper storage: 1700*1650*900mm

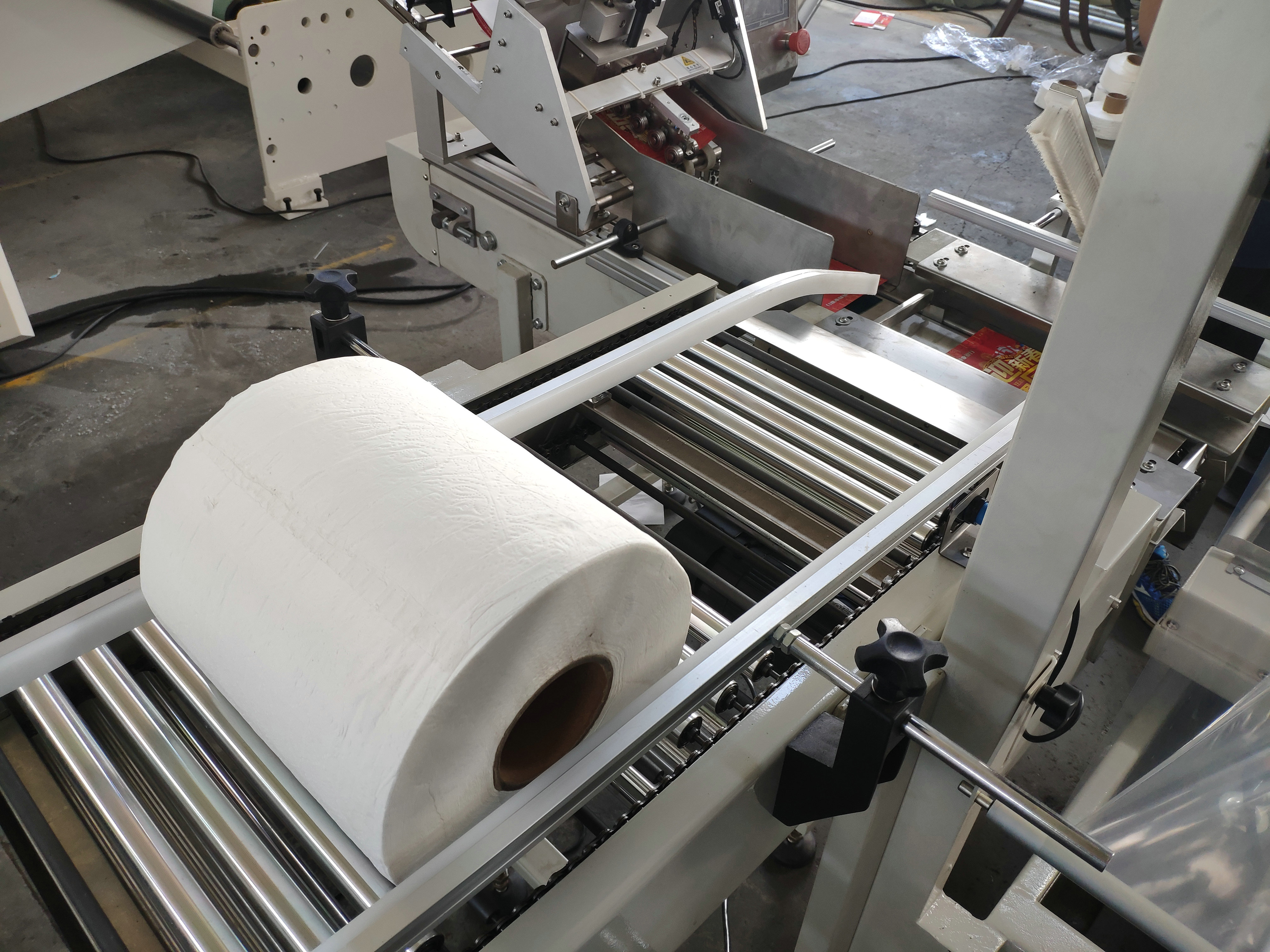

    XY-TN-269 Automatic Maxi Roll Paper Shrink Packing Machine

    Product Description


    Automatic cutting sealing and temperature shrink machine uses shrink film to pack the product out, after heating, the shrink film will shrink the wrap coiler in a package. In order to fully display the item, with protection and increase the beauty and sense value.


    Product Parameter


    Model
    4525L cutting and sealing machine
    4525 temperature shrink machine
    Power source
    220V 50HZ
    380V 50HZ
    Rated Power
    1.35KW
    9.6KW
    Sealing Size(L*W)mm
    550*450
    450*220*120
    Packing speed
    20-40 Packs /min
    0-10m/min
    Packaging Size(L*W*H)mm
    450 * 400 *120
    450*220*120
    Machine size(L*W*H)mm
    1500*750*1360
    1600*700*1300
    Weight
    300KG
    150KG

    Detailed Pictures



    Company Profile

    Fujian Xinyun Machinery Development Co., Ltd is good at Paper Converting Machinery Manufacturing.
    Professional supplier of:
    1) Toilet Paper Machine (1.2m--2.8m width of parent roll, Customize Service)
    2) Roll Kitchen Paper Towel Machine (1.2m--2.8m width of parent roll, Customize Service)
    3) Facial Tissue Machine (2-14 output lanes)
    4)Napkin Paper machine(L-fold, 1/4-fold, 1/6-fold, 1/8-fold and other multi-fold type)
    5) Hand Towel Paper Machine(C-fold, V-fold and N/Z fold type)
    6) Pocket Tissue Machine(mini and standard size)
    7) All kinds of Tissue Paper Cutting and Packing Machine
    8) Another Household Paper Equipments and Production Line.
