XY-TQ-B Good price two colors printing small toilet roll tissue paper making machine
Outline
Good price two colors printing small toilet roll tissue paper making machine is for toilet paper roll processing. Machines have core feeding unit, which can do both with and without paper roll core. Raw material is processed from jumbo roll from color printing , perforation, end cutting and spray the tail glue to become a log roll. Then it can work with cutting machine and packing machine to become the finished products-small toilet paper rolls . The machine is controlled by PLC, and people can operate it through PLC touch screen, the whole process is automatic, which is easy to operate, and lower laybor cost.
The production process is: Unreeling — color printing---Perforating— Rewinding— Tail gluing— Edge trimming---Automatic core loading.
Feature and Function
1. Automatic core feeding system, automatic log pusher after rewinding, then rewinding the new log again.
2. Automatic edge-trimming, core feeding, glue spraying and sealing synchronously in one time.
3.Leaving 10-18mm tail, easy to rewind again, so reducing shortcut waste and save the cost.
4. Adopts international advanced PLC programmable controlling technique, man-machine interface operation, data set and parametric fault shows on touch screen.
5. Three horizontal type back stands, pneumatic loading system, with wide driving flat belts; each jumbo roll can be adjusted independently.
6. Embossing Unit: adopt point to point embossing rollers, making the two layers match well, the paper is soft and has clear patterns
7. Adopt jogging switches for wearing the paper, easy and safe to operate.
Product Parameters
Technical data:
| Machine Model | 1092 | 1575 | 2000 | 2200 | 2400 | 2600 | 2800 |
| Width of jumbo roll (mm) | 1200 | 1750 | 1950 | 2150 | 2350 | 2550 | 2750 |
| Finished Products Diameter | Φ80~120mm ( can be adjustable) | ||||||
| Finished Products Inner Diameter | Φ32~60 mm | ||||||
| Jumbo roll diameter (mm) | Φ1200 (Other sizes please point out) | ||||||
| Jumbo Roll Inner Diameter | 76.2 mm (other sizes please point out) | ||||||
| Perforation distance (mm) | 4 blade,90~140mm; 2 blade,150~300mm; | ||||||
| Production speed | 160-230 m/minute | ||||||
| Parameter set | Touching-screener Multi-menu Man-machine Interface Operation System | ||||||
| Controller | PLC program | ||||||
| Mechanical driving | Driven by stepless regulator to guarantee the precise length of final products. | ||||||
| Air pneumatic system | 3 Pa (air-compressor), the minimum pressure 5kg/cm2 pa (prepared by buyer) | ||||||
| Power | 10kw 380V 50Hz (depends on model) | ||||||
| Overall size (L×W×H) | 6200X2750X1800 mm | ||||||
| Weight of equipment | About 4.2T | ||||||
| Chosen items (Should be ordered separately) | |||||||
| Embossment | Single embossment, Double embossment, Edge embossment | ||||||
| Embossment down roller | Paper roller, rubber roller | ||||||
| Jumbo roll stander | 1-3 plies | ||||||
| Rewinding unit | Non-core unit | ||||||
| Printing unit | Two color heliotype printing unit | ||||||
| Other special request for machine is welcome | |||||||

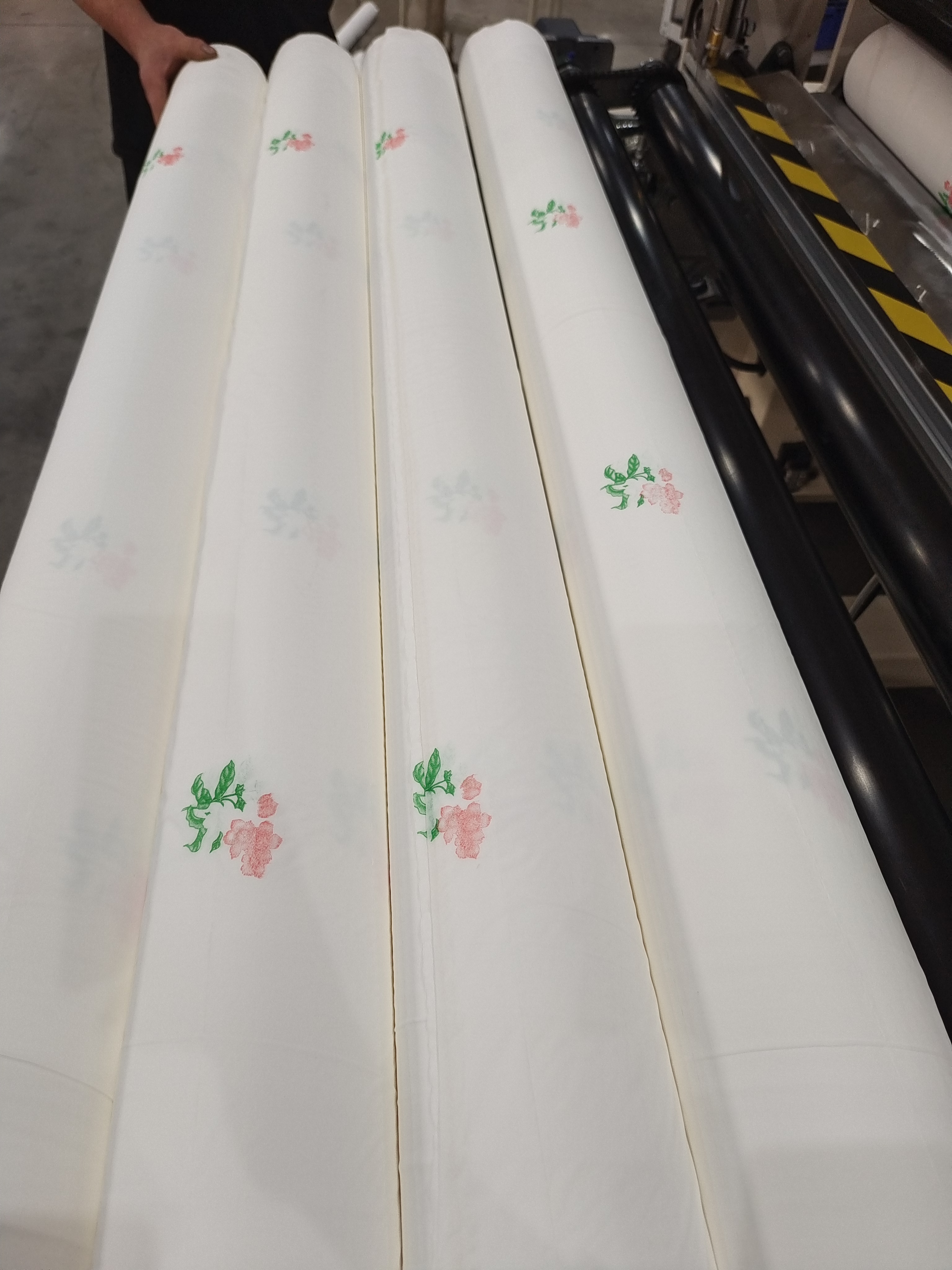

Finished Products
After Sales Service
(1), All our machine will have Two years guarantee
(2), Within two year after receiving our machines, Under right operation and non-artificial reasons, If there are any damaged parts or accessories, We will replace them by DHL or Fedex immediately FREE OF CHARGE.
(3), After two year warranty, Spare parts and damaged parts will be charged at cost price. If there is something wrong with the machine, We are responsible to solve this problem soonest, and help customers to restore production as soon as possible.
(4), After the machines arrive, the sellers shall send technician to install the production line(if need). And the buyer shall pay their round-trip air tickets from China factory to buyer's factory, the charge of visa, food ,transportations and accommodation in buyer's city.
