Brand Name : | Xinyun |
Model Number : | XY-TN-269 |
Certification : | CE |
Price : | USD 14300 set |
Payment Terms : | L/C, T/T |
Supply Ability : | 200 sets per year |
Delivery Time : | 60days |
XY-TN-269 Automatic maxi toilet paper roll heat shrinking packing machine for tissue factory use
Product Description
Automatic sealing and shrink wrapping machine series, are widely
applied to the shrink package of maxi roll tissue, JRT jumbo roll
toilet paper, carton box, foodstuff, beverage, pharmaceuticals,
audiovisual products, hardware, cosmetics, books, toys, plastic,
electronic components and so on.
Feature& Functions
1. The horizontal cross-knife of the sealing part adopts the
vertical driving, and the vertical knives adopts the international
advanced constant-temperature side sealing knives. The sealing line
is straight and firm, which can ensure the sealing and cutting line
in the middle position of the product and achieve perfect sealing
effect.
2. Products with different package sizes can be completed with only
hand wheel adjustment, increasing reliability and making it easier
to operate.
3. Feed length control is combined with electric eye detection and
timer to precisely control the length of the film, making the
shrinking effect easier to control.
4. Automatically coiled waste material, controlled by a separate
motor, does not slack or over-tighten and cracks, and the waste
material is easy to disassemble.
Product Parameter
Model | 4525L cutting and sealing machine |
Voltage | 380V 50/60hz |
Power | 1.35kw |
Packing height | Max. 250mm |
Sealing size(L*W) | 1600*450mm |
Packing speed | 15m/min |
Air pressure | 5kg/m² |
Machine size | 1810*980*1460mm |
Weight | 320kg |

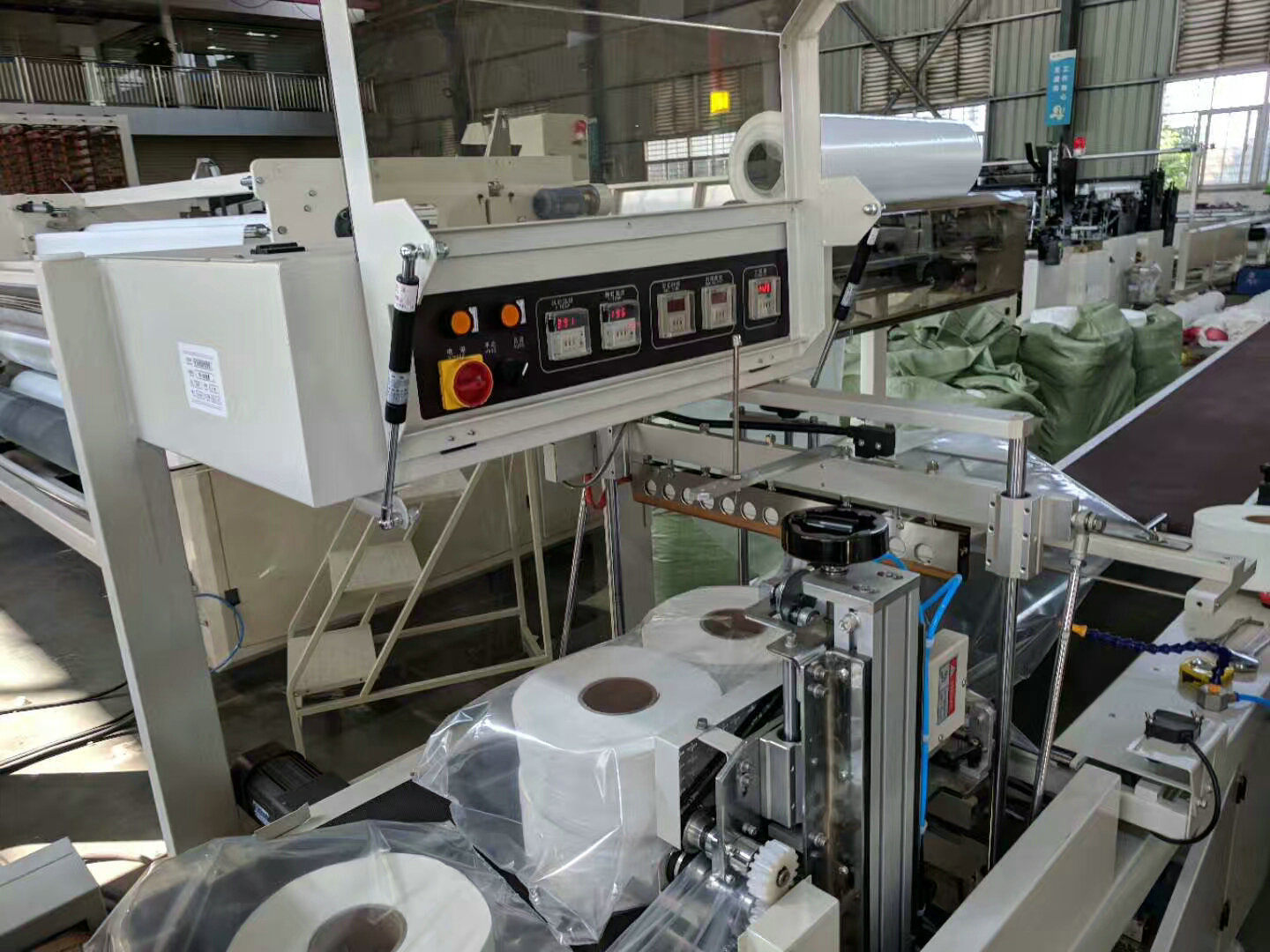

Detailed Pictures
WORKSHOP
Company Profile
Fujian Xinyun Machinery Development Co., Ltd is good at Paper
Converting Machinery Manufacturing.
Professional supplier of:
1) Toilet Paper Machine (1.2m--2.8m width of parent roll, Customize
Service)
2) Roll Kitchen Paper Towel Machine (1.2m--2.8m width of parent
roll, Customize Service)
3) Facial Tissue Machine (2-14 output lanes)
4)Napkin Paper machine(L-fold, 1/4-fold, 1/6-fold, 1/8-fold and
other multi-fold type)
5) Hand Towel Paper Machine(C-fold, V-fold and N/Z fold type)
6) Pocket Tissue Machine(mini and standard size)
7) All kinds of Tissue Paper Cutting and Packing Machine
8) Another Household Paper Equipments and Production Line.
![]() |
