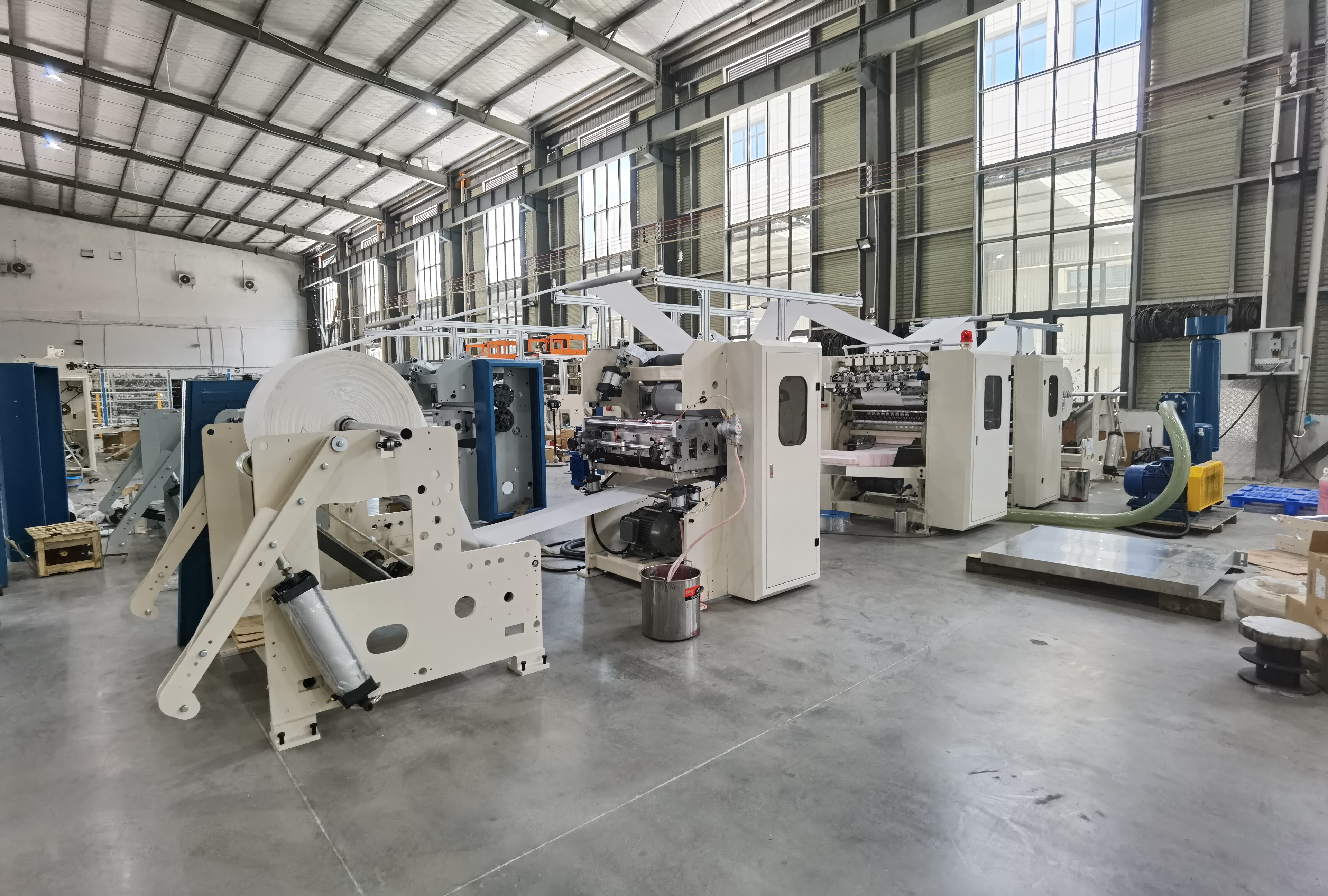

Good quality V fold glue lamination disposable hand towel paper making machine
V Fold Glue Lamination hand towel folding machine is for making hand towel. Raw material through embossing, glue laminating and interfolding into V fold hand towel. The glue lamination unit of this machine adopt leading technology and wall type structure, embossing pattern clear, glue well-distributed. Interfolding way makes it more convenient for home use. This machine is the best choice for making hand towel for middle and high-end market.
  |
1. Production speed : 60~100m/min
2. Embossing unit: Steel to steel embossing unit.
3. Pneumatic broken paper automatic separation, convenient wear paper.
4. Using synchronous belt transmission, transmission ratio is accurate, low noise.
5. Base paper adapt range, 33-45g/m2 (single ply)
6. Automatic counting sub-bit row of output, speed adjusted by frequency changer
7. Screw shear knives, Vacuum adsorption fold, web tension control by manual
8. Variable speed unwinding, can be adapted to base level of tension.
9. Electronically Controlled Pneumatic, easy to operate.
10. Pneumatic parent roll loading system; The unwinding belt is adjusted pneumatically, when the parent paper is used up the machine will slow down to stop; All the pneumatic device’s air press are adjustable.
11. Product width range, to facilitate marketing
12. paper break sensor, air compressor provided by buyer
13. high grade glue lamination unit,two layers connected with lamination, glue unit for lamination, automatic gluing composite.
14. Four parent roll shafts; in front and back each two parent roll shafts, convenient glue compound. Equipped with devices which can adjust the position of the parent rolls.
15. Steel to rubber embossing ( four sets); The steel rollers were plated with hard chrome, the embossing is very clear;
| XY-BT-288 6L | |
| Unfold size of finished products | 210(L)*230±2mm(Other sizes are available) |
| Folded size of finished products | 105(L)*230±2mm(Other sizes are available) |
| Raw material size | 680mm |
| Raw material inner core diameter | 76.2mm (Other sizes are available) |
| Production speed | 80-100m/min (Depending on the machine model ) |
| Power | Frequency conversion speed regulator |
| Programmable controller | PLC computer controller |
| Folding type | Vacuum suction “ V” fold |
| Transmission unit | Timing belt and flat belt |
| Counter | Ink marked |
| Embossing unit | Steel to steel |
| Slitting unit | Pneumatic dot slitting |
| Pneumatic system | 3HP Air compressor, mini air pressure 5 kg/cm2 (provided by customer) |
| Total power | 24KW |
| Overall dimension |
Depends on Machine Model
|
| Weight | Depend on the size and configure |
Fujian Xinyun Machinery Development Co.,Ltd is good at Paper Converting Machinery Manufacture.
Professional supplier of:
1) Toilet Paper Machine (1.2m--2.8m width of parent roll, Customize Service)
2) Roll Kitchen Paper Towel Machine (1.2m--2.8m width of parent roll, Customize Service)
3) Facial Tissue Machine (2-14 output lanes)
4) Napkin Paper machine(L-fold, 1/4-fold, 1/6-fold, 1/8-fold and other multi-fold type)
5) Hand Towel Paper Machine(C-fold, V-fold and N/Z fold type)
6) Pocket Tissue Machine(mini and standard size)
7) All kinds of Tissue Paper Cutting and Packing Machine
8) Another Household Paper Equipments and Production Line.
|
|
