Automatic PLC controlled 10 bags bundle facial tissue paper packing machine price
Features:

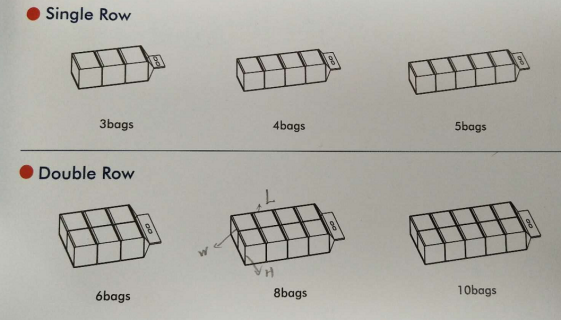

1. Full automatic run. High speed. Suitable for packing bundling facial tissue(6,8,10 bags in one bag).
2. Can be connected with single bag wrapping machine.
3. Servo system,PLC controlled.
4. Auto feeding, auto adjustment.Adopting high quality sensors.
5. Operated by color touch screen display.
6. Emergency stop/ pause function, safety alarm system, air and electric power protection system.
7. Adopting constant temperature sealing and cutting system.
Model | XY-BT-300 |
Capacity | 25bundling bag/min |
Power supply | 380V 50HZ |
Air supply | 0.5-0.7MPA(Supplied by user) |
Motor Power | 9.8KW |
heating power | 1.6KW |
Intake pipe diameter | 10-12mm |
Servo motor | 8 |
Feeding mode | Full automatic lanes feeding system |
Suitable for packing | Bundling facial tissue |
Bag size/Rolls per bag | L450*W(130-400)*H(80-105) mm |
Bundling bag mode | Prefabricated bag with air-bleed hole |
Bundling bag material | PE, thickness::≥0.05mm |
Bundling bag store | Two bag storage |
Bundling bag storing quantity | ≤300 pcs |
Machine weight | 2000kg |
Machine size | L3100*W1200*H1600 mm |
After Sales Service
(1), All our machine will have Two years guarantee
(2), Within two year after receiving our machines, Under right
operation and non-artificial reasons, If there are any damaged
parts or accessories, We will replace them by DHL or Fedex
immediately FREE OF CHARGE.
(3), After two year warranty, Spare parts and damaged parts will be
charged at cost price. If there is something wrong with the
machine, We are responsible to solve this problem soonest, and help
customers to restore production as soon as possible.
(4), After the machines arrive, the sellers shall send technician to install the production line(if need). And the buyer shall pay their round-trip air tickets from China factory to buyer's factory, the charge of visa, food ,transportations and accommodation in buyer's city.
Fujian Xinyun Machinery Development Co.,Ltd is good at Paper
Converting Machinery Manufacture.
Professional supplier of:
1) Toilet Paper Machine (1.2m--2.8m width of parent roll, Customize
Service)
2) Roll Kitchen Paper Towel Machine (1.2m--2.8m width of parent
roll, Customize Service)
3) Facial Tissue Machine (2-14 output lanes)
4) Napkin Paper machine(L-fold, 1/4-fold, 1/6-fold, 1/8-fold and
other multi-fold type)
5) Hand Towel Paper Machine(C-fold, V-fold and N/Z fold type)
6) Pocket Tissue Machine(mini and standard size)
7) All kinds of Tissue Paper Cutting and Packing Machine
8) Another Household Paper Equipments and Production Line.
![]() |
