Full Automatic Bottom Output Hanging type V fold Facial Tissue Paper Making Machine Production Line
This production line consists of :
XY-GU-20A Automatic Facial Tissue Folding Machine
XY-GU-281 Automatic Facial Tissue Cutting Machine
XY-BT-299 Automatic Hanging Type Facial Tissue Bag Packing Machine
From jumbo roll paper into the finished product, the whole line work smoothly and run stable, saving the labor cost and reducing the labor strength. It’s best choice for the producing hanging type facial tissue.
XY-GU-20A Automatic Facial Tissue Folding Machine
|
Machine model
|
XY-GU-20A
|
|
Folded size of finished products
|
100*(120-210)±2mm
|
|
Unfold size of finished products
|
200*210±2mm
|
|
The width of jumbo roll paper
|
1400mm
|
|
Diameter of jumbo roll paper
|
1200mm
|
|
Diameter of jumbo roll paper inner core
|
76.2mm
|
|
Daily Output
|
About 7.5T/22 hours (jumbo roll:three layers and 15g/m²)
|
|
Embossing unit
|
Steel to steel full embossing, Steel to steel edge embossing ,independent pneumatic regulation
|
|
Slitting unit
|
Pneumatic slitting
|
|
Pneumatic system
|
3 HP air compressor ,mini pressure 5kg/cm2PA
|
|
Driving system
|
Timing belt
|
|
Voltage
|
380V 50HZ
|
|
Pneumatic system
|
3 HP air compressor ,mini pressure 5kg/cm2PA
|
XY-GU-281 Automatic Facial Tissue Cutting Machine
High speed facial tissue cutting machine is an important component equipment of Box-drawing facial tissue production line , which can greatly improve the level of automation and production efficiency of the production line.
The machine is strong, beautifully designed, cut paper precise movements, rolls flat section, and smooth.
|
Designation
|
Parameter values
|
|
The length of unfinished products
|
minimum 500mm(or, mini 5lines)
|
|
The Height of finished product
|
30~130mm
|
|
Production Speed
|
20~150cuts/min
|
|
Operating speed
|
20~120cut/min
|
|
Round blade outer diameter
|
Φ610mm
|
|
Paper cutting circular knife top speed
|
980R/min
|
|
Cutting size
|
L(90-250)-W(130-500)-H70-100
|
|
Left-over Length
|
20~65mm
|
|
Power
|
11KW
|
|
Power supply
|
380V 50Hz
|
|
Air pressure
|
0.5~0.8MPa
|
|
Machine Size
|
4600*1700*2500mm
|
|
weight
|
2300~2600kg
|

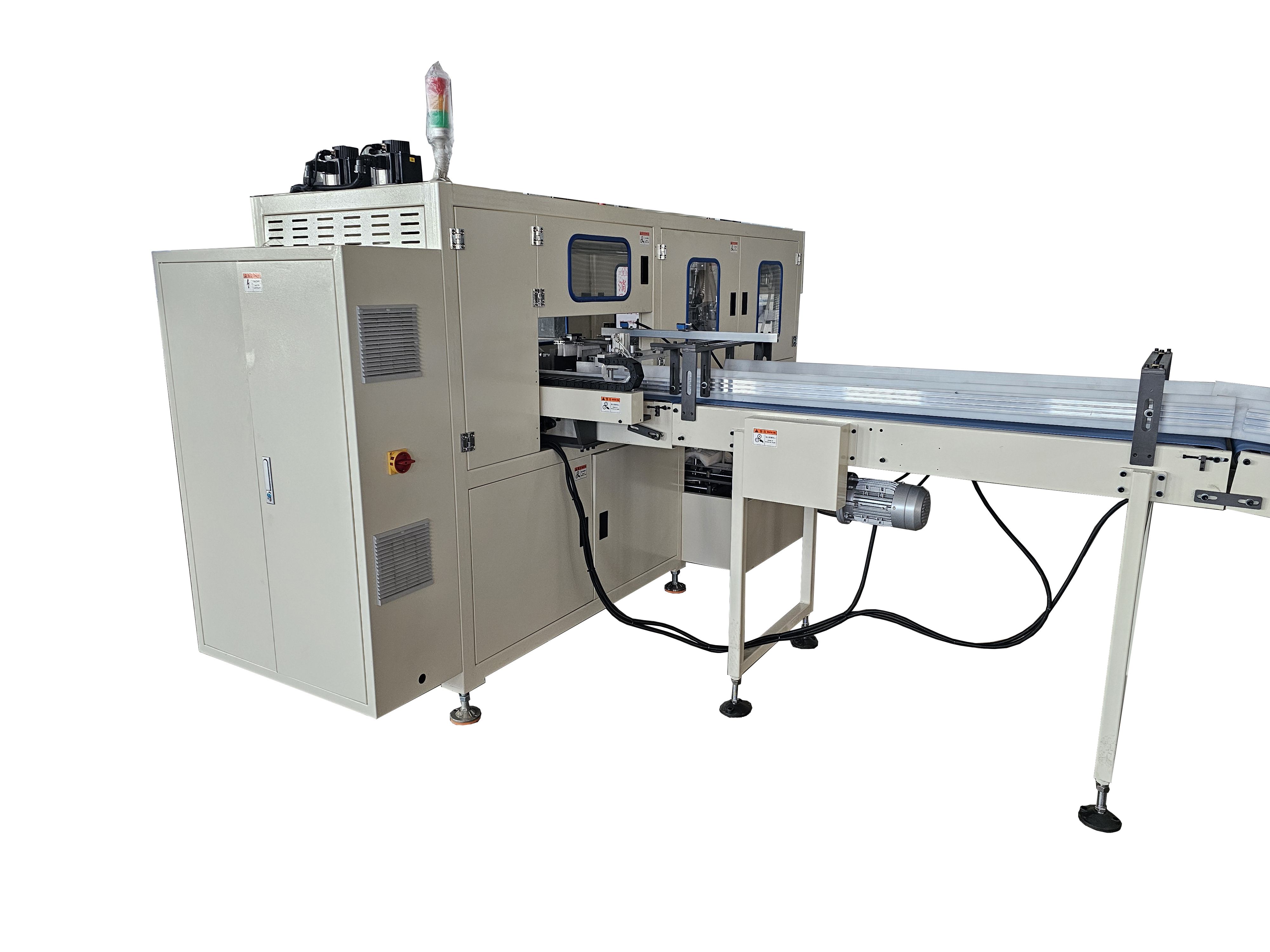

XY-BT-299 Automatic Hanging Type Facial Tissue Bag Packing Machine
Design speed: 30 bags/min
Production speed :20-28 bags/min (depending on the specifications)
Power Motor power:12 Kw
Main unit heating power:2.4Kw
Machine weight:1400KG
Packaging qualification rate ≥98%
Dimensions:3750*4890*1550 (length × width × height)
Power type :AC 380 V (volts) 50 Hz (hertz)
Compressed air consumption : 6kg/cm2 0.45m3/min
Machine noise ≤75 decibels (db)
Note: The above data may differ from the actual data due to different packaging materials and other similar situations that cause different machine configuration requirements.
Q: Are you trading company or manufacturer
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 60-90 days if the goods are not in stock, it is according to
quantity.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
