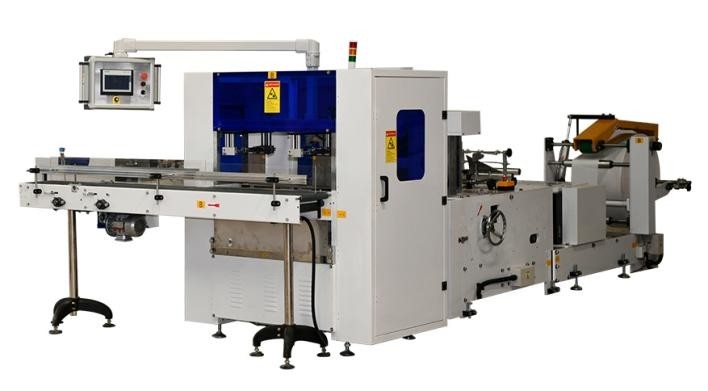

XY-OQ-7000A High Speed Fully Automatic Tissue Paper Napkin Making Machine With
Automatic Transferring
Outline:
The Automatic Paper Napkin Machines are not only efficient and
reliable but also exceptionally user-friendly. Ideal for those
involved in the high-volume supply of paper products, these
machines boast an array of advanced features, including automatic
folding, embossing, and optional glue lamination, color printing,
and automatic transferring. The high-speed paper folder ensures
swift and precise processing, making it an invaluable asset for any
business seeking to enhance productivity and streamline operations.
Main Technical Paremeters:
| Speed | 1000 sheet/min(300m/min) |
| Layers of the paper | 1-2 layers 15 - 21 g/ m², 1 layer paper need ≥19g |
| Material Diameter | 1200 mm |
| Inner diameter of raw paper | 76.2 mm |
| Embossing | Steel to woolen |
| Color printing device | 1-2colors, ceramic anilox roll,sealed ink box |
| Folding type | 1/2,1/4,1/6,1/8 |
| The host structure | wallboard structure |
| The host drive | synchronous toothed belt drive, a flat belt conveying |
| The control mode | frequency control of motor speed |
| Broken paper features: | embossed cut paper stop position |
| Whet knife way | position manual adjustment, the pneumatic |
| Rear frame feeding | Automatic feeding,Type wide belf feeding, 1.2 meters in diameter can be put on the raw material |
| Counting | electronic counter, pneumatic hop |
| Power | 380V 50Hz three phase |
| Automatic transfer function | Adopt INOVANCE PLC program control |
| Principle of automatic transfer | the directional distribution, collection and counting position location points fold pattern |
| Automatic transfer setting | Automatic transfer number adjustable, height between 35mm-120mm |
Detail Pictures:
FAQ:
Q: Are you trading company or manufacturer?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. Or it is
60-90 days if the goods are not in stock, it is according to
quantity.
Q: Do you provide samples? Is it free or extra?
A: Yes, we could offer the sample for free charge but do not pay
the cost of freight.
Q: What is your terms of payment?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30%
T/T in advance ,balance before shippment.
|
|
