XY-TQ-B Nice design dot to dot lamination embossing kitchen towel paper rewinding machine
Outline
Nice design dot to dot lamination embossing kitchen towel paper rewinding machine have core feeding unit,can do both with and without core.Raw material from jumbo roll after full embossing or edge embossing, then perforation, end cutting and spray the tail glue become a log.Then it can working with cutting machine and packing machine to become the finished products. The machine is controlled by PLC, people operate it through touch screen, the whole process is automatic, easy to operate, lower the man cost. And Our machine can special-made according to clients’ requirements.

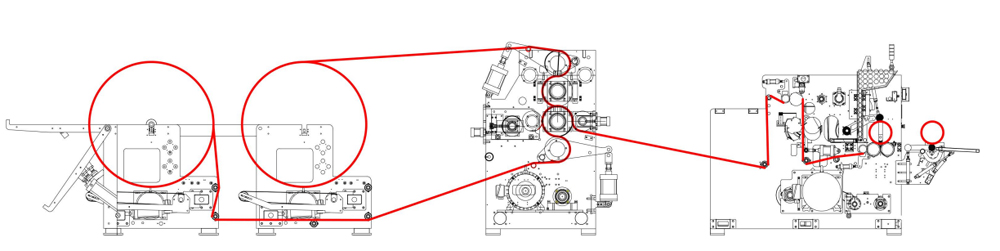

The production process is: Unreeling — Embossing — Perforating— Lamination— Rewinding— Tail-gluing— Edge trimming---Automatic core loading.
Functions and Features --- Wall Type Automatic Rewinding Machine
1. Automatic core feeding system, automatic log pusher after rewinding, then rewinding the new log again.
2. Automatic edge-trimming, core feeding, glue spraying and sealing synchronously in one time. Leaving 10-18mm tail, easy to rewind again, so reducing shortcut waste and save the cost.
3. Adopts international advanced PLC programmable controlling technique, man-machine interface operation, data set and parametric fault shows on touch screen.
4. Adopts 4 pieces high Precision spiral knives, low noise, clear perforation, adopt gearbox to have bigger range.
5. Three horizontal type back stands, pneumatic loading system, with wide driving flat belts; each jumbo roll can be adjusted independently.
6. Embossing Unit: adopt point to point embossing rollers, making the two layers match well, the paper is soft and has clear patterns
7. Adopt jogging switches for wearing the paper, easy and safe to operate.
Product Parameters
Technical data:
|
Jumbo roll max width
|
1850mm (Other size can be specified)
|
|
Jumbo roll diameter
|
Φ1200mm
|
|
Jumbo roll inner core diameter
|
3inches(76.2mm)
|
|
Finish product diameter
|
Φ70-φ280mm
|
|
Finish product Inner core diameter
|
φ38-φ76mm
|
|
Perforation distance
|
120-150mm
|
|
Production speed
|
180-230m/min
|
|
Parameter set
|
HMI, Touch Screen
|
|
Pneumatic system
|
3HP Air Compressor, Minimum Pressure: 5kg/cm 2Pa(Provide by user)
|
|
Unwinding transmission
|
Variable stepless speed regulation
|
|
Rewinding Unit
|
With core or coreless
|
Two independent jumbo roll stands
Steel To Rubber Embossing Device
Glue Lamination Device
This device is optional, and it often used in kitchen towel and maxi roll. To make paper with higher water absorption.
Accumulator for glue laminated paper
It is for glue lamination continue running, and guarantee all paper with glue.
Finished product
Automatic Glue Lamination Maxi Roll Kitchen Towel Machine Production Line
There are four machines in this production line.
1) XY-TQ-B Full automatic toilet paper making machine
High speed:230 meters/minute Capacity for one day: about 2 Tons(about 20,000 rolls/8 hours)
2) XY-AI-500 Automatic maxi roll band saw cutting machine
Capacity: 15-30 rolls/min Cutting diameter:150-280mm
3) XY-TN-269 Automatic maxi roll shrink packing machine Capacity: 10-20 bags/min
4) Optional: XY-SD-B Automatic Paper Roll Core Making Machine
Capacity: 10-20 m/min
Q: Are you trading company or manufacturer
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 60-90 days if the goods are not in stock, it is according to
quantity.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
Fujian Xinyun Machinery Development Co., Ltd.
Fujian Xinyun Machinery Development Co., Ltd. is located in
Quanzhou City, Fujian Province in China. It's a professional sales
of toilet paper machine, napkin paper machine, facial tissue
machine, hand towel paper machine, pocket tissue machine, all kinds
of tissue paper cutting machine and packing machine, complete
production line etc. we have our own processing center to guarantee
the quality of machine and quickly delivery, advanced technology,
convenient operation, good in quality and cheap in price, products
are exported to South America(like Chile, Argentina, Peru), Africa
( like Egypt, Nigeria , South Africa) Middle East (Like Saudi
Arbia, Iran, Iraq, Kuwait) Europe (like Spain, Romania, Greece) and
so on, praised by the majority of users. We're glad to supply the
solutions and new technical in paper machine field, these years we
committed to the development of high-quality, high efficiency,
energy saving, environmental protection new products, service in
paper making machinery industry. If you're interested in developing
your own paper machine factory or you need to know how to start
tissue paper business, welcome to contact us, we will recommend you
suitable machines with reasonable price, will help customer to
arrange shipment, and send engineer to customer's factory to
install machines and train workers. We are willing to work with
customers at home and abroad to create brilliant. Fujian Xinyun
Machinery Development Co., Ltd invites & welcomes customers to
visit China and our company!
