    Fully Automatic Glue Lamination Toilet Tissue Paper Rewinding Machine

    Ask Lasest Price
    Brand Name : XINYUN
    Model Number : XY-TQ-B
    Certification : CE
    Price : USD 23220-50500 set
    Payment Terms : T/T
    Delivery Time : 60 work days
    • Product Details
    • Company Profile

    Fully Automatic Glue Lamination Toilet Tissue Paper Rewinding Machine

    XY-TQ-B Fully Automatic Glue Lamination Toilet Tissue Paper Rewinding Machine

    Fully Automatic Glue Lamination Toilet Tissue Paper Rewinding Machine


    Outline:

    The Automatic Wrapper Type High-Speed Toilet Paper / Maxi Roll Rewinding Machine is designed for processing toilet paper rolls. It incorporates an advanced core feeding unit and is capable of handling raw materials sourced from jumbo rolls that have undergone embossing, perforation, end trimming, and gluing procedures. This machine operates in tandem with cutting and packing equipment to manufacture finished products.

    Under the control of a Programmable Logic Controller (PLC) and with an intuitive touchscreen interface for operation, it enables fully automated production, ensuring user-friendliness and significant reduction in labor costs. Moreover, customization options are provided to meet diverse client specifications.


    Functions and Features --- Wall Type Automatic Rewinding Machine:

    1.This machine is designed for manufacturing toilet paper rolls. The entire structure is wall-mounted, ensuring stable operation at high speeds and minimizing noise.

    2. Perforation distance is adjustable to meet different distance needs.

    3. Automatic core feeding system, automatic pushing the log after rewinding, then rewinding the new log again.

    4. Automatic edge-trimming, glue spraying and sealing synchronously in one time. Leaving 10-18mm tail, easy to rewind again, so reducing shortcut waste and save the cost.

    5. Adopting international advanced PLC programmable control technology, it features a man-machine interface.

    Data settings and parametric faults are clearly shown on the touch screen for easy operation and monitoring.

    6. Adopts 4 pieces high Precision spiral knives, low noise, clear perforation, adopt gearbox to have bigger range.

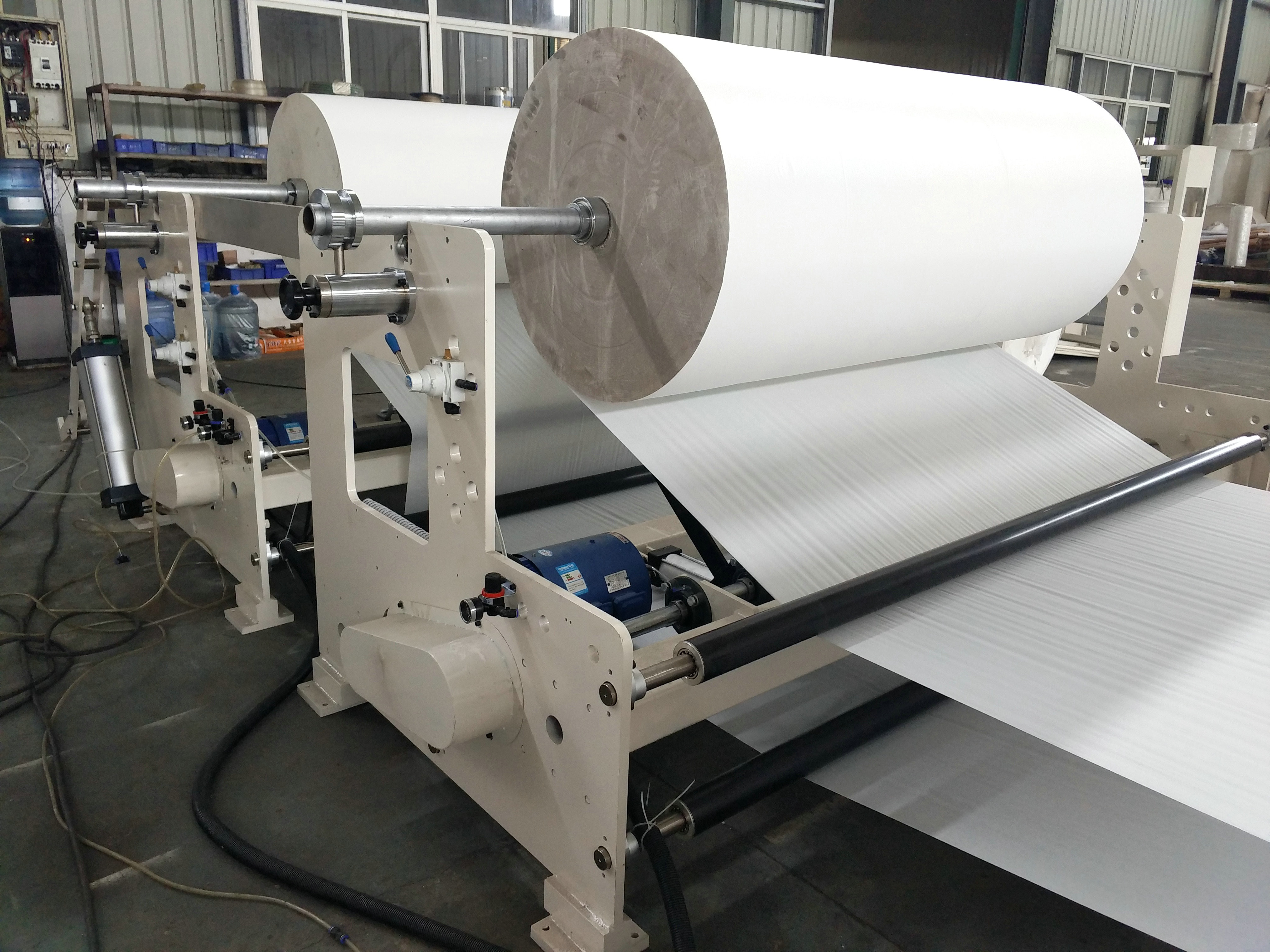

    7. Two wall type back stands, pneumatic lifting system, with wide driving flat belts; each jumbo roll can be adjusted independently.

    8. Adopt jogging switches for wearing the paper, easy and safe to operate.


    Main Technical Parameter:

    ModelXY-TQ-B Wall Type Automatic Toilet Paper Rewinding Machine
    Jumbo Roll Max Width2800mm (Other size can be specified)
    Jumbo Roll DiameterΦ1100mm(Other size can be specified)
    Jumbo Roll Inner Diameter3inches(76.2mm) (Other size can be specified)
    Perforation Distance4 anvil Blades(115mm)(Other size can be specified)
    Finished Product DiameterΦ90~φ280mm
    Finished Product Core Diameterφ38~φ76mm
    Production Speed0~230m/min
    Program ControllerPLC(DELTA OR INVT need to confirm)
    Unwind Stands1 or 3 Stands(Need to be specified)
    Pneumatic System3HP Air Compressor, Minimum Pressure: 5kg/cm 2Pa(Provide by user)
    Main Power14KW 380V 50HZ
    Dimension7000*4000*1900(L*W*H)
    WeightAbout 7T
    Edge-Line EmbossingSteel to steel (Pneumatic Control)
    Full EmbossmentSteel to rubber.

    Detail Pictures:

    Fully Automatic Glue Lamination Toilet Tissue Paper Rewinding MachineFully Automatic Glue Lamination Toilet Tissue Paper Rewinding Machine

    Fully Automatic Glue Lamination Toilet Tissue Paper Rewinding MachineFully Automatic Glue Lamination Toilet Tissue Paper Rewinding Machine


    FAQ:
    Q: Are you trading company or manufacturer?
    A: We are factory.
    Q: How long is your delivery time?
    A: Generally it is 5-10 days if the goods are in stock. Or it is 60-90 days if the goods are not in stock, it is according to quantity.
    Q: Do you provide samples? Is it free or extra?
    A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
    Q: What is your terms of payment?
    A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
