XY-TQ-B 230m/min high speed 2 colors printing lamination kitchen towel and toilet paper making machine

Outline

high speed 2 colors printing lamination kitchen towel and toilet paper making machine is for toilet paper roll and kitchen towel processing. Machines have core feeding unit, which can do both with and without paper roll core. Raw material is processed from jumbo roll after full embossing or edge embossing, then color printing and glue lamination, perforation, end cutting and spray the tail glue to become a log roll. Then it can work with cutting machine and packing machine to become the finished products-small toilet paper rolls and kitchen towel. The machine is controlled by PLC, and people can operate it through PLC touch screen, the whole process is automatic, which is easy to operate, and lower laybor cost.

The production process is: Unreeling — color printing---glue lamination---- Perforating— Rewinding— Tail gluing— Edge trimming---Automatic core loading.

Feature and Function

1. Automatic core feeding system, automatic log pusher after rewinding, then rewinding the new log again.
2. Automatic edge-trimming, core feeding, glue spraying and sealing synchronously in one time.

3.Leaving 10-18mm tail, easy to rewind again, so reducing shortcut waste and save the cost.
4. Adopts international advanced PLC programmable controlling technique, man-machine interface operation, data set and parametric fault shows on touch screen.

5. Three horizontal type back stands, pneumatic loading system, with wide driving flat belts; each jumbo roll can be adjusted independently.

6. Embossing Unit: adopt point to point embossing rollers, making the two layers match well, the paper is soft and has clear patterns

7. Adopt jogging switches for wearing the paper, easy and safe to operate.

Product Parameters

Finished Products

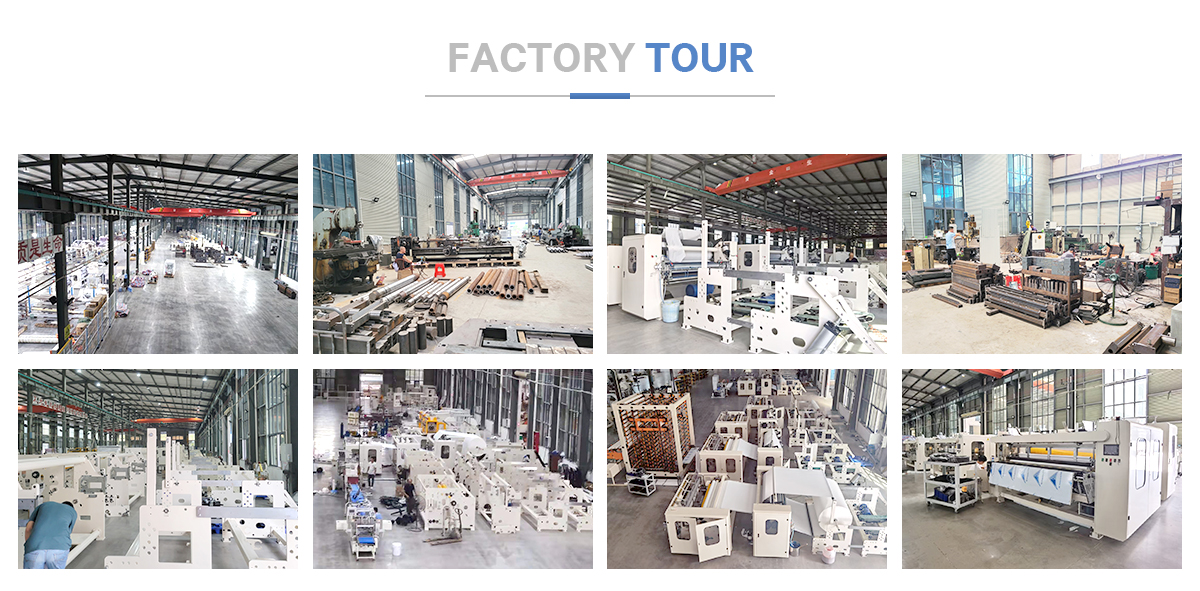

WORKSHOPS

After Sales Service

(1), All our machine will have Two years guarantee
(2), Within two year after receiving our machines, Under right operation and non-artificial reasons, If there are any damaged parts or accessories, We will replace them by DHL or Fedex immediately FREE OF CHARGE.
(3), After two year warranty, Spare parts and damaged parts will be charged at cost price. If there is something wrong with the machine, We are responsible to solve this problem soonest, and help customers to restore production as soon as possible.

(4), After the machines arrive, the sellers shall send technician to install the production line(if need). And the buyer shall pay their round-trip air tickets from China factory to buyer's factory, the charge of visa, food ,transportations and accommodation in buyer's city.

Fujian Xinyun Machinery Development Co.,Ltd is good at Paper Converting Machinery Manufacture.
Professional supplier of:

1) Toilet Paper Machine (1.2m--2.8m width of parent roll, Customize Service)
2) Roll Kitchen Paper Towel Machine (1.2m--2.8m width of parent roll, Customize Service)
3) Facial Tissue Machine (2-14 output lanes)
4) Napkin Paper machine(L-fold, 1/4-fold, 1/6-fold, 1/8-fold and other multi-fold type)
5) Hand Towel Paper Machine(C-fold, V-fold and N/Z fold type)
6) Pocket Tissue Machine(mini and standard size)
7) All kinds of Tissue Paper Cutting and Packing Machine
8) Another Household Paper Equipments and Production Line.

Fujian Xinyun Machinery Development Co., Ltd. is located in Quanzhou City, Fujian Province in China. It's a professional sales of toilet paper machine, napkin paper machine, facial tissue machine, hand towel paper machine, pocket tissue machine, all kinds of tissue paper cutting machine and packing machine, complete production line etc. we have our own processing center to guarantee the quality of machine and quickly delivery, advanced technology, convenient operation, good in quality and cheap in price, products are exported to South America(like Chile, Argentina, Peru), Africa ( like Egypt, Nigeria , South Africa) Middle East (Like Saudi Arbia, Iran, Iraq, Kuwait) Europe (like Spain, Romania, Greece) and so on, praised by the majority of users. We're glad to supply the solutions and new technical in paper machine field, these years we committed to the development of high-quality, high efficiency, energy saving, environmental protection new products, service in paper making machinery industry. If you're interested in developing your own paper machine factory or you need to know how to start tissue paper business, welcome to contact us, we will recommend you suitable machines with reasonable price, will help customer to arrange shipment, and send engineer to customer's factory to install machines and train workers. We are willing to work with customers at home and abroad to create brilliant. Fujian Xinyun Machinery Development Co., Ltd invites & welcomes customers to visit China and our company!
