Professional Manufacturer of Tissue Paper Making Machine.
1 Years
| Ask Lasest Price | |
| Brand Name : | XINYUN |
| Model Number : | XY-TQ-A-G |
| Certification : | CE |
| Price : | 100000-150000 USD |
| Payment Terms : | T/T |
| Supply Ability : | 500 sets per year |
| Delivery Time : | 60-70 days |

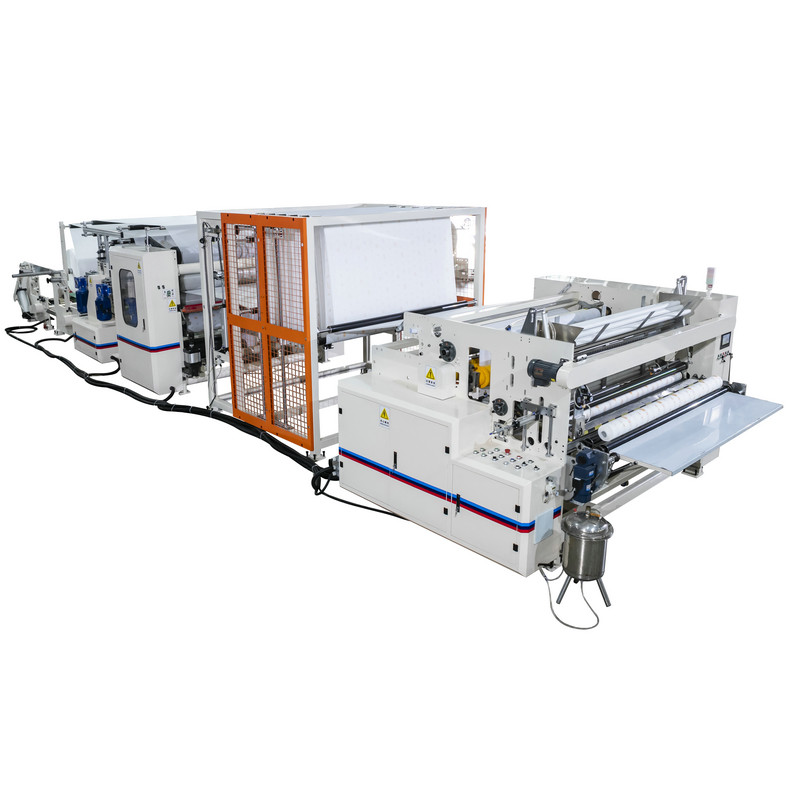

Full automatic 2 color printing small kitchen towel and toilet paper roll making machine production line
Feature and Function
1. Automatic core feeding system, automatic log pusher after rewinding, then rewinding the new log again.
2. Automatic edge-trimming, core feeding, glue spraying and sealing synchronously in one time.
3.Leaving 10-18mm tail, easy to rewind again, so reducing shortcut waste and save the cost.
4. Adopts international advanced PLC programmable controlling technique, man-machine interface operation, data set and parametric fault shows on touch screen.
5. Three horizontal type back stands, pneumatic loading system, with wide driving flat belts; each jumbo roll can be adjusted independently.
6. Embossing Unit: adopt point to point embossing rollers, making the two layers match well, the paper is soft and has clear patterns
7. Adopt jogging switches for wearing the paper, easy and safe to operate.
Product Parameters
| Jumbo roll width | 1800mm (Other size can be specified) |
| Jumbo roll diameter | max.1200mm(Other size can be specified) |
| Jumbo roll inner core diameter | 3 inches(76.2mm) |
| Finish product diameter | 90-280mm |
| Finish product inner core diameter | 35-90mm |
| Perforation distance | 100-300mm(Other size can be specified) |
| Production speed | 180-230m/min |
| PLC | INVT |
| Rewinding Unit | with core or coreless(need to point out) |
Specification:
| item | XY-AI-398F |
| film width | Max.750mm |
| bag lengh | 150-600mm |
| bag width | 180～360mm |
| product height | Max.130mm |
| Packing material | CPP,OPP and SPP |
| packing speed | 30~60 bag/min |
| power | 220V,50HZ,2.8Kw |
| machine size | 5700×1120×1450mm |
| machine weight | 850Kg |
After Sales Service
(1), All our machine will have Two years guarantee
(2), Within two year after receiving our machines, Under right operation and non-artificial reasons, If there are any damaged parts or accessories, We will replace them by DHL or Fedex immediately FREE OF CHARGE.
(3), After two year warranty, Spare parts and damaged parts will be charged at cost price. If there is something wrong with the machine, We are responsible to solve this problem soonest, and help customers to restore production as soon as possible.
(4), After the machines arrive, the sellers shall send technician to install the production line(if need). And the buyer shall pay their round-trip air tickets from China factory to buyer's factory, the charge of visa, food ,transportations and accommodation in buyer's city.
Fujian Xinyun Machinery Development Co.,Ltd is good at Paper Converting Machinery Manufacture.
Professional supplier of:
1) Toilet Paper Machine (1.2m--2.8m width of parent roll, Customize Service)
2) Roll Kitchen Paper Towel Machine (1.2m--2.8m width of parent roll, Customize Service)
3) Facial Tissue Machine (2-14 output lanes)
4) Napkin Paper machine(L-fold, 1/4-fold, 1/6-fold, 1/8-fold and other multi-fold type)
5) Hand Towel Paper Machine(C-fold, V-fold and N/Z fold type)
6) Pocket Tissue Machine(mini and standard size)
7) All kinds of Tissue Paper Cutting and Packing Machine
8) Another Household Paper Equipments and Production Line.
|
|
