Professional Manufacturer of Tissue Paper Making Machine.
1 Years
| Ask Lasest Price | |
| Brand Name : | Xinyun |
| Model Number : | XY-OQ-7000A-1 |
| Certification : | CE |
| Payment Terms : | L/C, T/T |
| Supply Ability : | 120 sets per year |
| Delivery Time : | 60days |
| Price : | USD 46500-60500USD set |
XY-OQ-7000A-1 Fully automatic high-speed napkin paper serviette quarter folding machinery production line
XY-OQ-7000A High-speed napkin paper making machine
Product Description
The Automatic Paper Napkin Machines are efficient, reliable, and easy to operate machines. The high-speed paper folder is quite useful for those who deal in supplying large quantities, it’s automatic Folding, Embossing, Embossing and Glue lamination(option), Color printing(Option,) and Automatic transferring
Feature & Functions
1. Transmission belt drive configuration
2. Pattern matching paper rolling device, pattern significantly
3. Electronic counting dislocation row of output
4. The folding plate and manipulator are folded and formed by a band sawing cutter
5. Other standard models can be customized
Product Parameter
| Model | XY-OQ-7000A |
| Speed | 1000 sheet/min(300m/min) |
| Layers of the paper | 1-2 layers 15 - 21 g/ m², 1 layer paper need ≥19g |
| Material Diameter | 1200 mm |
| Inner diameter of raw paper | 76.2 mm |
| Embossing | Steel to woolen |
| Color printing device | 1-2colors, ceramic anilox roll,sealed ink box |
| Folding type | 1/2,1/4,1/6,1/8 |
| . The host structure | wallboard structure. |
| The host drive | synchronous toothed belt drive, a flat belt conveying. |
| The control mode | frequency control of motor speed |
| Broken paper features: | embossed cut paper stop position |
| Whet knife way | position manual adjustment, the pneumatic |
| Rear frame feeding | Automatic feeding,Type wide belf feeding, 1.2 meters in diameter can be put on the raw material |
| Counting | electronic counter, pneumatic hop |
| Power | 380V 50Hz three phase |
| Automatic transfer function | Adopt INOVANCE PLC program control |
| Principle of automatic transfer | the directional distribution, collection and counting position location points fold pattern |
| Automatic transfer setting | Automatic transfer number adjustable, height between 35mm-120mm |
XY-BT-298 Fully automatic napkin paper three-dimensional packing machine
Product Description
BT-298 high speed fully automatic facial tissue single wrapping machine is suitable for automatically packing V fold hand towel, facial tissue and napkin.
Feature & Functions
1. Adopt the packing method by wrapping, hemming, and sealing with
a compact structure and high product appeal.
2. Adopt the controlling system of step-less frequency conversion,
touching screen and PLC, clear display, and easy maintenance.
3. Adopt an auto-putting conveyor, which is easy to connect with an
automatic production line, saving laboring costs.
4. Stepless-speed regulation with double transducer, automatically
adjusting packing film length.
5. High autoimmunization, high specialization, high efficiency and
less trouble.
6. Different sizes can be handled easily thanks to a fast and
simple changeover facility.
Product Parameter
| Paper sorting mode | Automatic Smart Feeding |
| Paper sorting mode | 105packs/min |
| Stable production speed | ≤100 packs/min |
| Packaging film changing | ≤2min |
| Paper length | 95-210mm |
| Paper height | 35-100mm |
| Paper width | 95-150mm |
| Mould | 3 sets |
| Machine dimension | Length 4650 mm Width 3650 mm Height 1800 mm |
| Machine weight | ≤ 3500 KG |

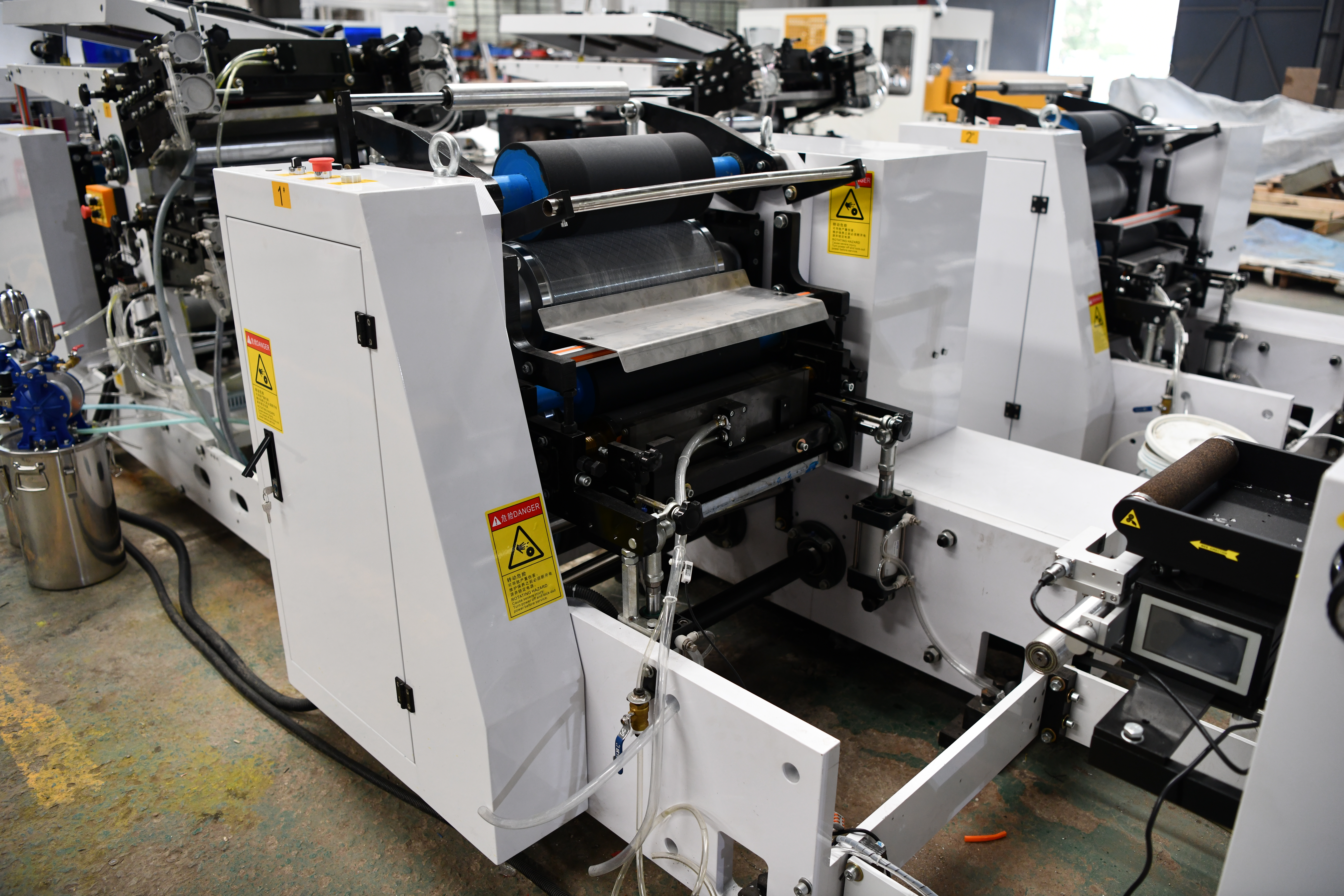

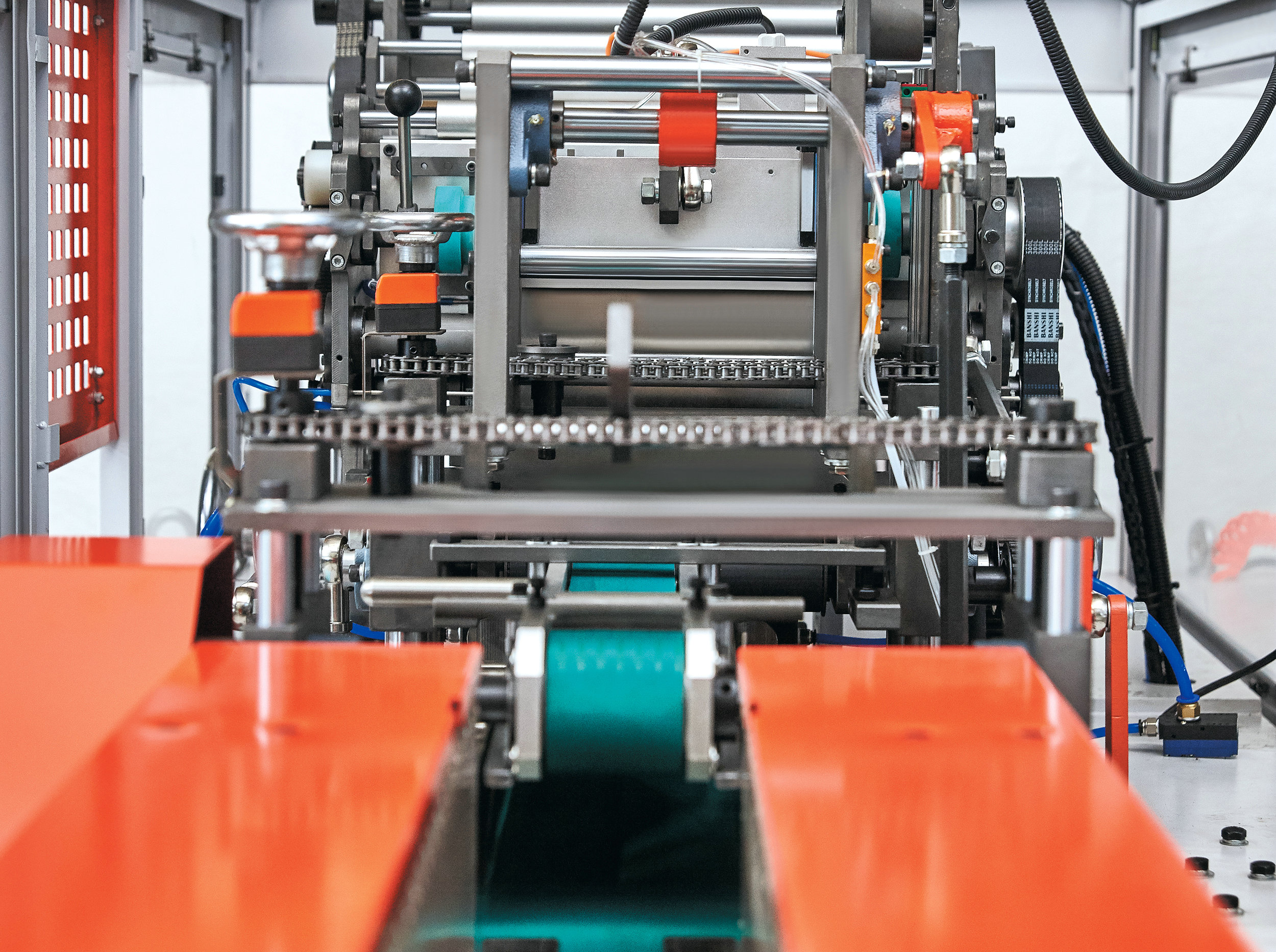

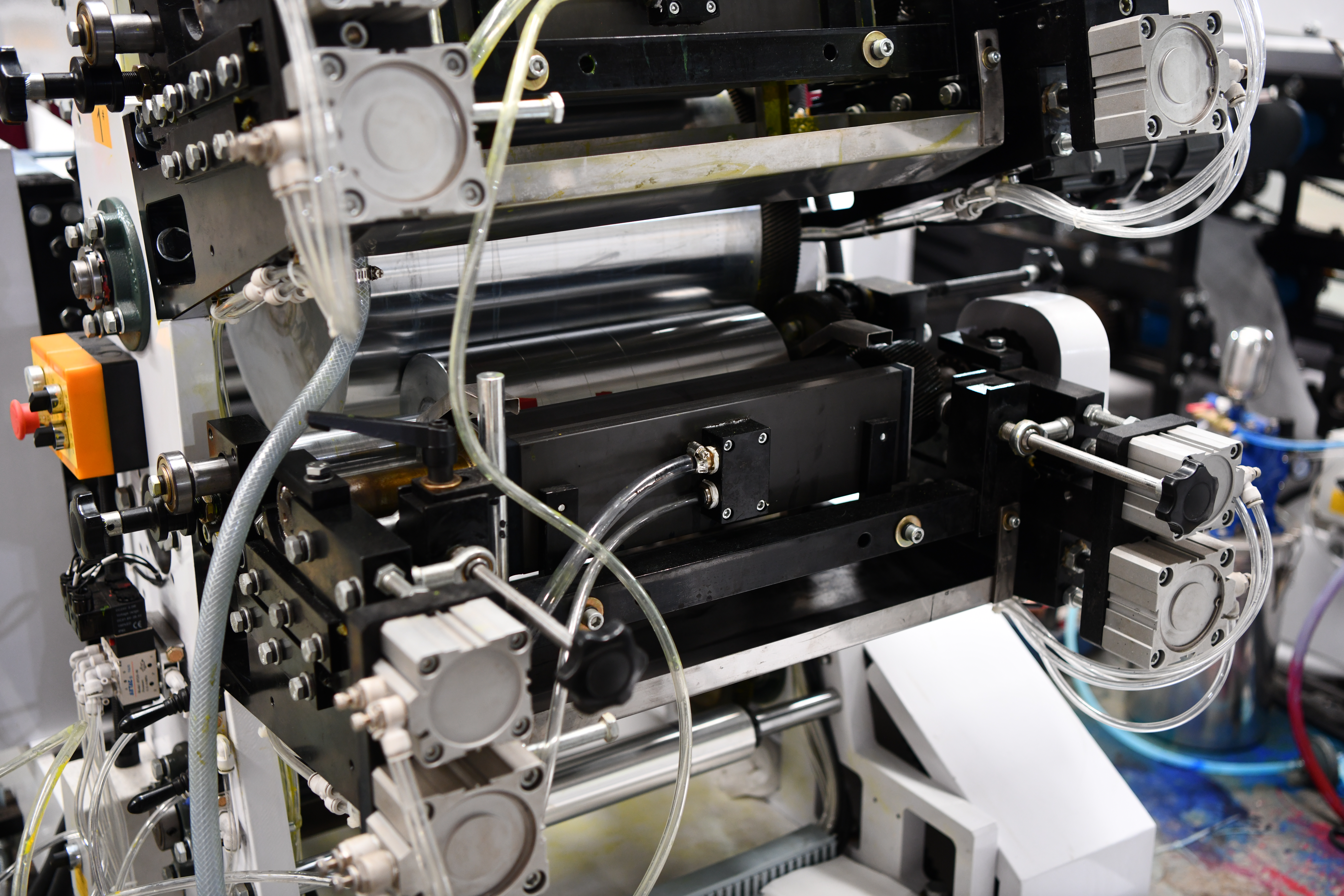

Detailed Pictures
Work Shop
Fujian Xinyun Machinery Development Co., Ltd is good at Paper
Converting Machinery manufacturing.
Professional supplier of:
1) Toilet Paper Machine (1.2m--2.8m width of parent roll, Customize
Service)
2) Roll Kitchen Paper Towel Machine (1.2m--2.8m width of parent
roll, Customize Service)
3) Facial Tissue Machine (2-14 output lanes)
4)Napkin Paper machine(L-fold, 1/4-fold, 1/6-fold, 1/8-fold and
other multi-fold type)
5) Hand Towel Paper Machine(C-fold, V-fold and N/Z fold type)
6) Pocket Tissue Machine(mini and standard size)
7) All kinds of Tissue Paper Cutting and Packing Machine
8) Another Household Paper Equipments and Production Line.
Welcome to send us An Inquiry, we will reply as soon as possible, thank you.
|
|
