XY-OQ-7000A High quality quarter fold napkin folding machine for tissue paper
factory at factory price
Product Description
The embossing Napkin Folding Machine is cut through the paper tray
after embossing and automatically folded into a square or
rectangular-shaped napkin open.
Clear and bright overlay accuracy, high speed stationary, is the
processing of special equipment for high-grade napkins.
Feature and functions
1. Transmission belt drive configuration
2. Pattern matching paper rolling device, pattern significantly
3. Electronic counting dislocation row of output
4. The folding plate and manipulator are folded and formed by a
band sawing cutter
5. Other standard models can be customized
Machine Model | XY-OQ-7000A |
Design Product Capacity | 600 sheets/line/minute |
Jumbo Roll Size | 200-400mm(W) 1200mm(Ø) |
Jumbo Roll Material Qualify | Paper Basic Weight: 18gsm x 2ply Paper Material:100% pure paper Jumbo Roll Paper Core: 3 inches |
Interfold Style | 1/2,1/4,1/6 and 1/8 |
Unfold Dimension | 200*200-400*400 |
Interfold Dimension | 100*100-200*200 |
Embossing device | steel to woolen |
Controlling System | Frequency drive |
Air compressor | Prepared by buyer |
Way of printing | Flexo printing. |

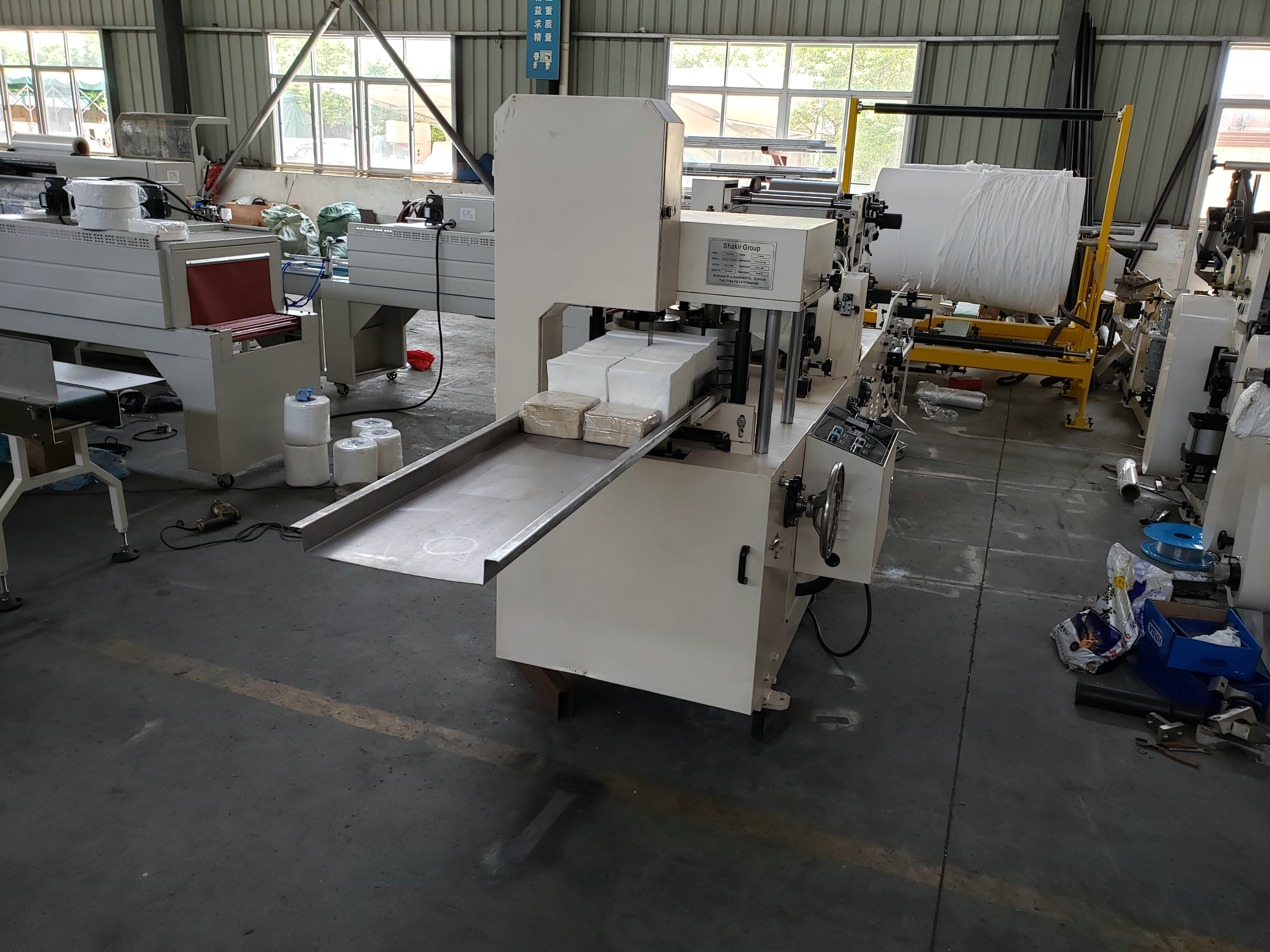

Detailed pictures
Work Shop
Company Parameter
Fujian Xinyun Machinery Development Co.,Ltd is good at Paper
Converting Machinery.
Professional supplier of:
1) Toilet Paper Machine (1.2m--2.8m width of parent roll, Customize
Service)
2) Kitchen Towel Paper Machine (1.2m--2.8m width of parent roll,
Customize Service)
3) Facial Tissue Machine (2-8 output lanes)
4) Napkin Paper machine(L-fold, 1/4-fold, 1/6-fold, 1/8-fold and
other multi-fold type)
5) Hand Towel Paper Machine(C-fold, V-fold and N/Z fold type)
6) Pocket Tissue Machine(mini and standard size)
7) All kinds of Tissue Paper Cutting and Packing Machine
8) Another Household Paper Equipments and Production Line.
