XY-AI-D653 Best Price 24 Rolls Bathroom Toilet Tissue Bundling Packing Machine
Main Features:
1.This state-of-the-art equipment seamlessly integrates with an
auto cutting machine, forming a high-efficiency production line.
With just one operator needed for bagging, the system takes care of
the rest: automatic conveying on the conveyor belt, stacking, paper
feeding, bagging, sealing, and cutting.
2. The equipment employs advanced PLC computer programming control,
featuring double frequency control and a user-friendly touch-screen
display for parameter adjustment. Settings are effortless, and
temperature control is precise, ensuring optimal protection of the
hot wire and high-temperature resistant adhesive tape.
3. The package sealing is aesthetically pleasing and neat, further
facilitating the connection with automatic machines to achieve机械化
conveying paper. Minimal human intervention is required, as workers
only need to handle the bagging process. The machine's enhanced
speed results in faster operations, saving labor costs, reducing
production expenses, and boosting production profitability.
4. With a packing speed of 4-6 bags per minute, this machine stands
out for its rational structure, stable performance, robust
materials, and durability. Premium imported components are used for
key control parts, while the remaining components adhere to
national high-quality standards, ensuring reliability and
longevity.
Main Technical Parameters:
Model | D653 | ||
Quantity (set) | 1 | ||
Weight(kg) | 750 | ||
Dimension for main machine(L*W*H)mm | 5000*1800*1500 | ||
Name | Toilet paper roll two layer middle packing machine | ||
Main design parameter | |||
Working speed(bag/min) | 4-6bags/min | ||
Arrangement mode | 2 row * (4-6) ranks *2 layer | ||
Specification of one roll | Diameter:90mm Height:90mm | ||
Specification for medium bag packaging(mm) | L | 450 | |
W | 360 | ||
H | 90 | ||
Packaging method | Prefabricated bag | ||
Feed control | PLC control automatic feeding | ||
Bagging method | Manual | ||
Packing material | PE,0PP | ||
Sealing quality | no disengage, no melting failure | ||
Film thickness(mm) | 8mm above | ||
Total power | 2.2KW | ||
Supply voltage | 220V 50HZ | ||
Air pressure | 0.5MPA |

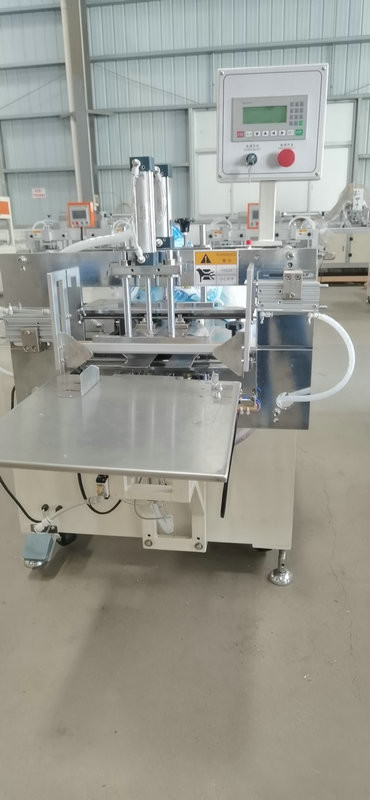

Detail Pictures:
FAQ:
Q: Are you trading company or manufacturer?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. Or it is
60-90 days if the goods are not in stock, it is according to
quantity.
Q: Do you provide samples? Is it free or extra?
A: Yes, we could offer the sample for free charge but do not pay
the cost of freight.
Q: What is your terms of payment?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30%
T/T in advance ,balance before shippment.
![]() |
